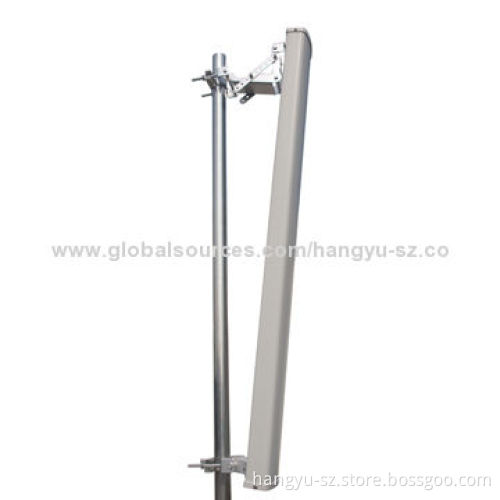

Dual-polarization Panel Antenna, 2,400 to 2,500MHz Frequency Range, 50 Ohms Impedance

Get Latest Price

Payment Type:: T/T, Western Union, L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, L/C at Sight

Product Description

Specification:

Frequency range: 2,400 to 2,500MHz
Gain: 16dBi
Polarization: ±45°
VSWR: ≤1.5
Beamwidth:
- Horizontal: 90°
- Vertical: 7.5°
Port isolation: ≥30dB
F/B ratio: ≥25dB
Side lobe suppression for first side lobe above main beam: ≥15dB
Impedance: 50Ω
Maximum power capacity: 200W
Lighting protection: DC ground
Connector type: N-K
Antenna dimensions: 940 x 132 x 62mm
Antenna weight: 3.5kg
Random material and color: UPV/light gray
Mechanical tilt: 15°
Pole diameter: Ø35 to 75mm
Rated wind velocity: 60m/second
Operating temperatures: -40 to 60°C
Humidity range: 5 to 95%

Features:

90° cover, dual-polarization
High-gain and low-VSWR
Provides adjustable angle installation kits
Anti-aging PVC cover

Applications:

2.4GHz band
WLAN/WiFi system/ISM band
Supports IEEE802.11b/g
Public hotspot, sector covers
Point to multiple-point

Frequency range: 2,400 to 2,500MHz

Gain: 16dBi

Polarization: ±45°

VSWR: ≤1.5

Beamwidth:

Horizontal: 90°
Vertical: 7.5°

Port isolation: ≥30dB

F/B ratio: ≥25dB

Side lobe suppression for first side lobe above main beam: ≥15dB

Impedance: 50Ω

Maximum power capacity: 200W

Lighting protection: DC ground

Connector type: N-K

Antenna dimensions: 940 x 132 x 62mm

Antenna weight: 3.5kg

Random material and color: UPV/light gray

Mechanical tilt: 15°

Pole diameter: Ø35 to 75mm

Rated wind velocity: 60m/second

Operating temperatures: -40 to 60°C

Humidity range: 5 to 95%

Horizontal: 90°

Vertical: 7.5°

90° cover, dual-polarization

High-gain and low-VSWR

Provides adjustable angle installation kits

Anti-aging PVC cover

2.4GHz band

WLAN/WiFi system/ISM band

Supports IEEE802.11b/g

Public hotspot, sector covers

Point to multiple-point
