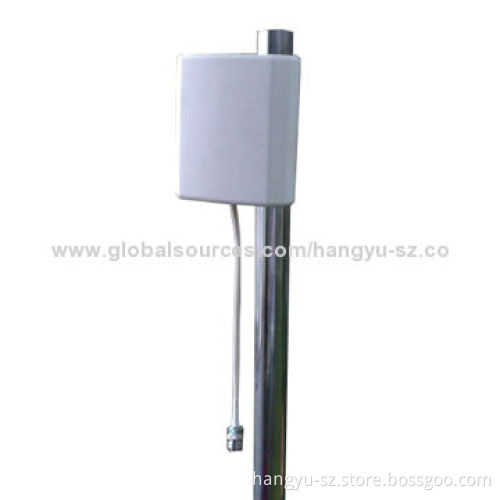

10dBi Wall-mounted Antenna with 2,300 to 2,700MHz Frequency Range and 400MHz Bandwidth
  • 10dBi Wall-mounted Antenna with 2,300 to 2,700MHz Frequency Range and 400MHz Bandwidth
10dBi Wall-mounted Antenna with 2,300 to 2,700MHz Frequency Range and 400MHz Bandwidth

10dBi Wall-mounted Antenna with 2,300 to 2,700MHz Frequency Range and 400MHz Bandwidth

Get Latest Price
Payment Type:
TT, Western Union, L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: TT, Western Union, L/C at Sight
Product Description
Product Description
  • Description:
    • 2.3-2.7GHz wall-mounted antenna is low-VSWR, broad bandwidth, compact size and light structure which is easy to install
    • It is applied to 2.4GHz, WLAN, Wi-Fi systems, MMDS systems and wireless bridges
  • Specifications:
    • Electrical:
      • Frequency range: 2300 to 2700MHz
      • Bandwidth: 400MHz
      • Gain: 10dBi
      • VSWR: ≤1.5
      • Horizontal beam width: 60°
      • Vertical beam width: 45°
      • F/B ratio: ≥18dB
      • Nominal impedance: 50Ω
      • Polarization: vertical
      • Maximum power: 50W
      • Connector: N-K or customized
    • Mechanical:
      • Antenna dimensions: 140 x 120 x 38mm
      • Weight: 0.25kg
      • Pole dimensions (D): 40 to 50mm
      • Temperatures: -40-60°C
      • Humidity range: 5 to 95%
  • 2.3-2.7GHz wall-mounted antenna is low-VSWR, broad bandwidth, compact size and light structure which is easy to install
  • It is applied to 2.4GHz, WLAN, Wi-Fi systems, MMDS systems and wireless bridges
  • Electrical:
    • Frequency range: 2300 to 2700MHz
    • Bandwidth: 400MHz
    • Gain: 10dBi
    • VSWR: ≤1.5
    • Horizontal beam width: 60°
    • Vertical beam width: 45°
    • F/B ratio: ≥18dB
    • Nominal impedance: 50Ω
    • Polarization: vertical
    • Maximum power: 50W
    • Connector: N-K or customized
  • Mechanical:
    • Antenna dimensions: 140 x 120 x 38mm
    • Weight: 0.25kg
    • Pole dimensions (D): 40 to 50mm
    • Temperatures: -40-60°C
    • Humidity range: 5 to 95%
  • Frequency range: 2300 to 2700MHz
  • Bandwidth: 400MHz
  • Gain: 10dBi
  • VSWR: ≤1.5
  • Horizontal beam width: 60°
  • Vertical beam width: 45°
  • F/B ratio: ≥18dB
  • Nominal impedance: 50Ω
  • Polarization: vertical
  • Maximum power: 50W
  • Connector: N-K or customized
  • Antenna dimensions: 140 x 120 x 38mm
  • Weight: 0.25kg
  • Pole dimensions (D): 40 to 50mm
  • Temperatures: -40-60°C
  • Humidity range: 5 to 95%
