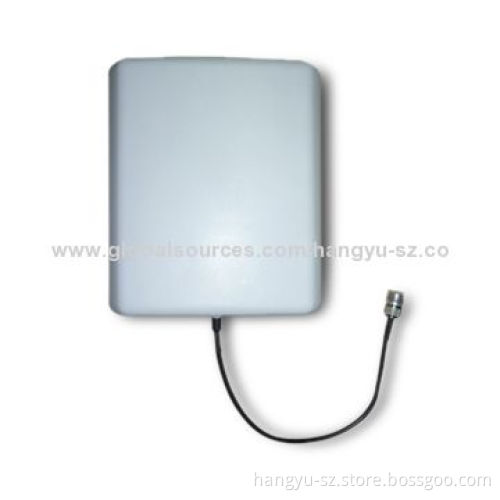

800-2,500MHz 10dBi 90 Degrees Terminal Panel Antenna, Mast or Wall Mount Mounting
  • 800-2,500MHz 10dBi 90 Degrees Terminal Panel Antenna, Mast or Wall Mount Mounting
800-2,500MHz 10dBi 90 Degrees Terminal Panel Antenna, Mast or Wall Mount Mounting

800-2,500MHz 10dBi 90 Degrees Terminal Panel Antenna, Mast or Wall Mount Mounting

Get Latest Price
Payment Type:
T/T, Westen Union, L/C at Sight, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Westen Union, L/C at Sight, PayPal
Product Description
Product Description
  • Specifications:
    • Electrical:
      • Frequency range: 800-960/1,710-2,500MHz
      • VSWR: ≤1.5
      • Gain: 7/10dBi
      • Vertical lobe width: 55/45°
      • Horizontal lobe width: 70/60/90°
      • Polarization: vertical
      • Impedance: 50Ω
      • Maximum input power: 50W
      • Lightning protection: DC ground
    • Mechanical:
      • Connector: TNC or other
      • Material: aluminum
      • Size: 210 x 180 x 44mm
      • Net weight: 650g
      • Installation: hold rod and screw
      • Operating temperatures: -40 to 60°C
  • Electrical:
    • Frequency range: 800-960/1,710-2,500MHz
    • VSWR: ≤1.5
    • Gain: 7/10dBi
    • Vertical lobe width: 55/45°
    • Horizontal lobe width: 70/60/90°
    • Polarization: vertical
    • Impedance: 50Ω
    • Maximum input power: 50W
    • Lightning protection: DC ground
  • Mechanical:
    • Connector: TNC or other
    • Material: aluminum
    • Size: 210 x 180 x 44mm
    • Net weight: 650g
    • Installation: hold rod and screw
    • Operating temperatures: -40 to 60°C
  • Frequency range: 800-960/1,710-2,500MHz
  • VSWR: ≤1.5
  • Gain: 7/10dBi
  • Vertical lobe width: 55/45°
  • Horizontal lobe width: 70/60/90°
  • Polarization: vertical
  • Impedance: 50Ω
  • Maximum input power: 50W
  • Lightning protection: DC ground
  • Connector: TNC or other
  • Material: aluminum
  • Size: 210 x 180 x 44mm
  • Net weight: 650g
  • Installation: hold rod and screw
  • Operating temperatures: -40 to 60°C
