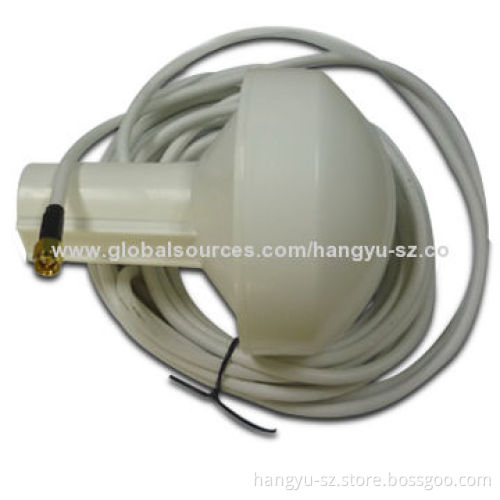

32dBi GPS Marine Antenna with Waterproof Feature, Measures 96 x 126mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, L/C at Sight

Product Description

Center frequency: 1,575.42 ±3MHz

VSWR: 1.5:1

Bandwidth: ±5MHz

Impedance: 50Ω

Peaking (high): 3dBic based on 7 x 7cm ground plane

Gain range: -4dBic at -90 to 90° (over 75% volume)

Polarization: RHCP

Amplifier/filter:Amplifier gain: 28, 45B and 55dB typical

Noise figure: 1.5dB

Sensitivity: 32dBi

Filter out-of-band attenuation (f0 = 1,575.42MHz)

7dB-in f0 ±20MHz

20dB-in f0 ±50MHz

30dB-in f0 ±100MHz

Output voltage VSWR: 2.0

Voltages: 3, 5, 3 to 5V DC

DC current: 5, 10 and 22mA (maximum)

Weight: 140g

Dimensions: Ø96 x 126mm

Cable RG-58: 5m

Connector types: SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX

Fixed form threaded (M24 x 1.5) connection

House color: white

Environments:

Working temperatures: -40 to 85

Vibration sine sweep: 1g (0-p) 10 to 50 to 10Hz each axis

Humidity range: 95 to 100%

Waterproof rate: 100%
