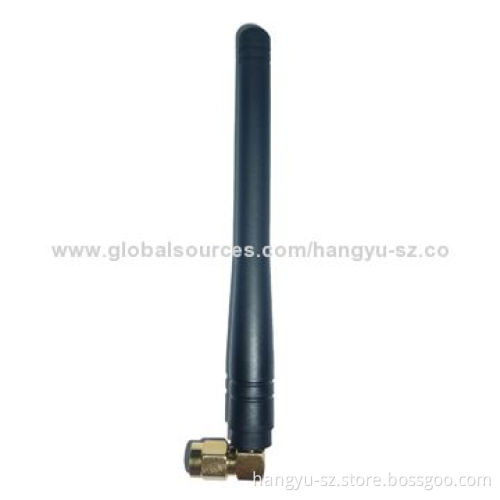

GSM 900/1800MHz Terminal Antenna with 2.0dBi Gain, R/A SMA Male Connector
  • GSM 900/1800MHz Terminal Antenna with 2.0dBi Gain, R/A SMA Male Connector
GSM 900/1800MHz Terminal Antenna with 2.0dBi Gain, R/A SMA Male Connector

GSM 900/1800MHz Terminal Antenna with 2.0dBi Gain, R/A SMA Male Connector

Get Latest Price
Payment Type:
T/T, Western Union, L/C at Sight and PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union, L/C at Sight and PayPal
Product Description
Product Description
  • Description:
    • Applied to GSM 900/1800MHz terminal equipment and GPRS wireless transmission
  • Specifications:
    • Electrical:
      • Frequency range: 890 to 960/1710 to 1880MHz
      • Bandwidth: 70/170MHz
      • Gain: 2.0dBi
      • VSWR: ≤2.0
      • Nominal impedance: 50Ω
      • Polarization: vertical
      • Maximum power: 50W
      • Connector: SMA-JW
    • Mechanical:
      • Antenna dimensions: Ø10.5 x 108mm
      • Weight: 12g
      • Temperature range: -40 to 60°C
      • Humidity range: 5 to 95% RH
  • Applied to GSM 900/1800MHz terminal equipment and GPRS wireless transmission
  • Electrical:
    • Frequency range: 890 to 960/1710 to 1880MHz
    • Bandwidth: 70/170MHz
    • Gain: 2.0dBi
    • VSWR: ≤2.0
    • Nominal impedance: 50Ω
    • Polarization: vertical
    • Maximum power: 50W
    • Connector: SMA-JW
  • Mechanical:
    • Antenna dimensions: Ø10.5 x 108mm
    • Weight: 12g
    • Temperature range: -40 to 60°C
    • Humidity range: 5 to 95% RH
  • Frequency range: 890 to 960/1710 to 1880MHz
  • Bandwidth: 70/170MHz
  • Gain: 2.0dBi
  • VSWR: ≤2.0
  • Nominal impedance: 50Ω
  • Polarization: vertical
  • Maximum power: 50W
  • Connector: SMA-JW
  • Antenna dimensions: Ø10.5 x 108mm
  • Weight: 12g
  • Temperature range: -40 to 60°C
  • Humidity range: 5 to 95% RH
