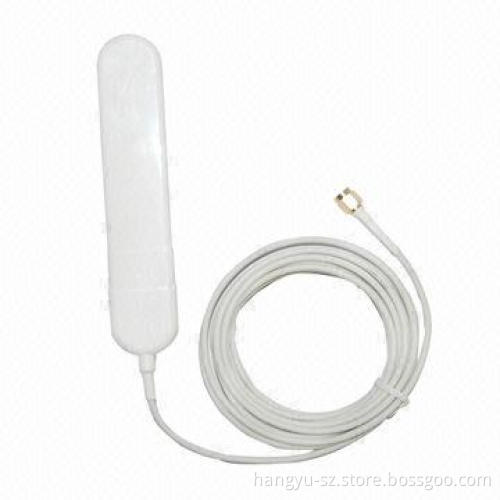

L Shape GSM Paste Antenna with 110MHz Bandwidth
  • L Shape GSM Paste Antenna with 110MHz Bandwidth
L Shape GSM Paste Antenna with 110MHz Bandwidth

L Shape GSM Paste Antenna with 110MHz Bandwidth

Get Latest Price
Payment Type:
TT, Westen Union, L/C at Sight, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: TT, Westen Union, L/C at Sight, PayPal
Product Description
Product Description
  • Compact structure and nice design, patched by 3M glues, whichis applied to car security and WAMR
  • Electrical specifications:
    • Frequency range: 815 to 925MHz
    • Bandwidth: 110MHz
    • Gain: 2 to 4.0dBi
    • VSWR: d2.0
    • Nominal impedance: 50©
    • Polarization: vertical
    • Maximum power: 50W
    • Connector: SMA-J
  • Mechanical specifications:
    • Cable length: LMR100, 3m
    • Antenna dimensions: 131.5 x 28.1 x 24.1mm
    • Weight: 55g
    • Installation way: adhesive
    • Temperature: -40 to +60°C
    • Humidity: 5 to 95%
  • Frequency range: 815 to 925MHz
  • Bandwidth: 110MHz
  • Gain: 2 to 4.0dBi
  • VSWR: d2.0
  • Nominal impedance: 50©
  • Polarization: vertical
  • Maximum power: 50W
  • Connector: SMA-J
  • Cable length: LMR100, 3m
  • Antenna dimensions: 131.5 x 28.1 x 24.1mm
  • Weight: 55g
  • Installation way: adhesive
  • Temperature: -40 to +60°C
  • Humidity: 5 to 95%
