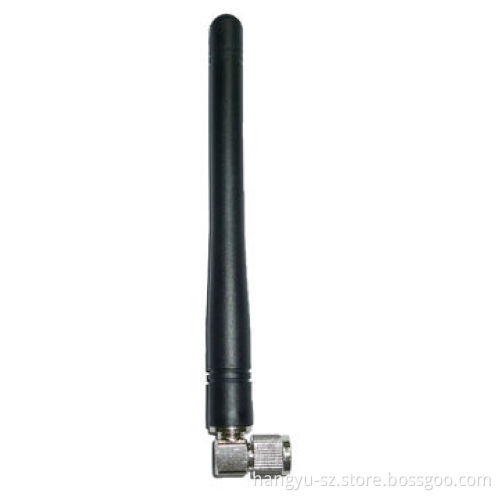

GSM Antenna with 90/280MHz Bandwidth, 2dBi Gain and R/A SMA Connector
  • GSM Antenna with 90/280MHz Bandwidth, 2dBi Gain and R/A SMA Connector
GSM Antenna with 90/280MHz Bandwidth, 2dBi Gain and R/A SMA Connector

GSM Antenna with 90/280MHz Bandwidth, 2dBi Gain and R/A SMA Connector

Get Latest Price
Payment Type:
T/T, Western Union, L/C at Sight and PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union, L/C at Sight and PayPal
Product Description
Product Description
  • Descriptions :
    • It's applied to GSM900/GSM1800 terminal equipment and GPRS wireless transmission
  • Electrical specifications:
    • Frequency range MHz: 824-960/1710-1990
    • Bandwidth MHz: 136/280
    • Gain-dBi: 2.0
    • VSWR: ≤2.0
    • Nominal impedance: Ω 50
    • Polarization: Vertical
    • Max. power: W 50
    • Connector SMA: JW
  • Mechanical specifications:
    • Antenna dimension: Φ10.5×115mm
    • Weight: 18g
    • Temperatures: -40～60℃
    • Humidity range: 5～95﹪
  • It's applied to GSM900/GSM1800 terminal equipment and GPRS wireless transmission
  • Frequency range MHz: 824-960/1710-1990
  • Bandwidth MHz: 136/280
  • Gain-dBi: 2.0
  • VSWR: ≤2.0
  • Nominal impedance: Ω 50
  • Polarization: Vertical
  • Max. power: W 50
  • Connector SMA: JW
  • Antenna dimension: Φ10.5×115mm
  • Weight: 18g
  • Temperatures: -40～60℃
  • Humidity range: 5～95﹪
