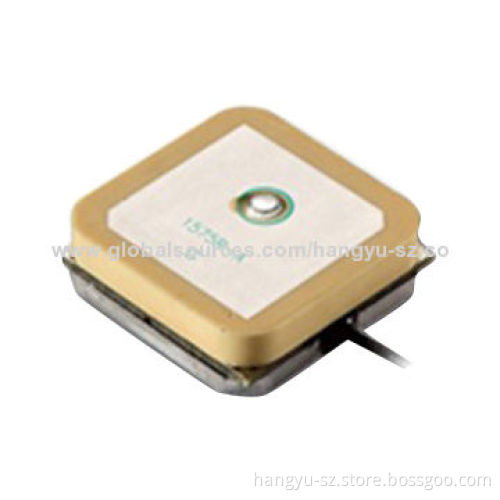

GPS Module, Embedded Built-in Type, Applied to Car Navigation, Logistics Positioning and More
  • GPS Module, Embedded Built-in Type, Applied to Car Navigation, Logistics Positioning and More
GPS Module, Embedded Built-in Type, Applied to Car Navigation, Logistics Positioning and More

GPS Module, Embedded Built-in Type, Applied to Car Navigation, Logistics Positioning and More

Get Latest Price
Payment Type:
PayPal, L/C, Western Union or T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: PayPal, L/C, Western Union or T/T
Product Description
Product Description
  • Technical data:
    • Center frequency: 1,575.42MHz
    • Output VSWR: <2.0
    • Bandwidth: 20MHz
    • Impedance: 50Ω
    • Polarization: RHCP
    • LNA gain (without cable): 30dB
    • Noise figure: <2dB at 3.3V (maximum)
    • Voltages: 3.3 to 5V DC
    • Current: 50mA DC (maximum)
    • Working power: 300mW (minimum) and 1.5W (maximum)
  • Mechanical data:
    • Weight: 73g
    • Size: 15 x 15 x 4mm
    • Connector: UFL
    • Mounting: magnetic base
    • Housing: black matte surface
  • Environment:
    • Working temperatures: -40 to 85 degrees Celsius
    • Humidity range: 95 to 100% RH
    • Weather-proof protection grade: IP67
  • Center frequency: 1,575.42MHz
  • Output VSWR: <2.0
  • Bandwidth: 20MHz
  • Impedance: 50Ω
  • Polarization: RHCP
  • LNA gain (without cable): 30dB
  • Noise figure: <2dB at 3.3V (maximum)
  • Voltages: 3.3 to 5V DC
  • Current: 50mA DC (maximum)
  • Working power: 300mW (minimum) and 1.5W (maximum)
  • Weight: 73g
  • Size: 15 x 15 x 4mm
  • Connector: UFL
  • Mounting: magnetic base
  • Housing: black matte surface
  • Working temperatures: -40 to 85 degrees Celsius
  • Humidity range: 95 to 100% RH
  • Weather-proof protection grade: IP67
