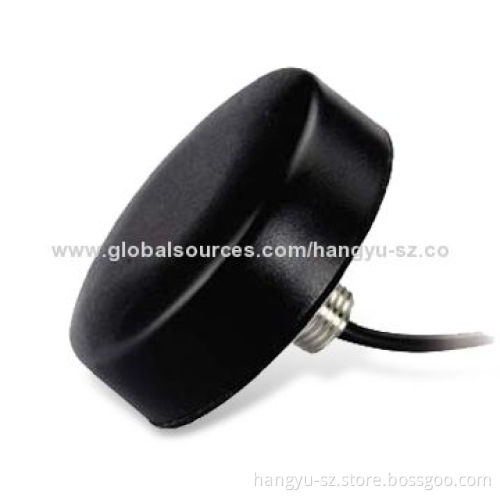

Car GPS Antenna with 1,575.42MHz, LL100, 5m Cable and Fakra C Blue Connector

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	PayPal, L/C, Western Union and T/T

Product Description

Technical data:

Mechanical data:

Center frequency: 1,575.42 ± 1MHz

Output VSWR: <2.0

Bandwidth: 20MHz

Impedance: 50Ω

Polarization: RHCP

LNA gain (without cable): 30 ± 2dB type (3.3 to 5V)

Noise figure: <2dB, at 3.3V (maximum)

Voltages: 3.3 to 5V DC

Current: 50mA (maximum)

Working power: 300mW (minimum) and 1.5W (maximum)

Weight: 73g

Dimensions: 46 x 38 x 13mm

Cable: LL100, 5m

Connector: Fakra C blue

Mounting: screw mounting

Housing: black matte surface

Working temperatures: -40 to 85°C

Humidity range: 95 to 100% RH

Weatherproof: IP67
