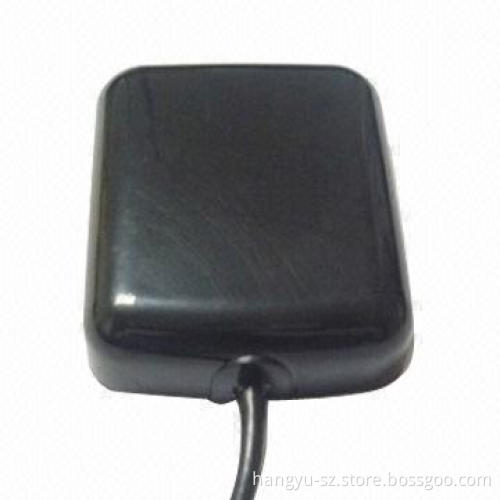

GPS Antenna with SMA Connector, 20MHz Band Width and 50mA DC Current, Sized 46 x 38 x 13mm
  • GPS Antenna with SMA Connector, 20MHz Band Width and 50mA DC Current, Sized 46 x 38 x 13mm
GPS Antenna with SMA Connector, 20MHz Band Width and 50mA DC Current, Sized 46 x 38 x 13mm

GPS Antenna with SMA Connector, 20MHz Band Width and 50mA DC Current, Sized 46 x 38 x 13mm

Get Latest Price
Payment Type:
PayPal, L/C at Sight, Western Union, T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: PayPal, L/C at Sight, Western Union, T/T
Product Description
Product Description
  • Center frequency: 1575.42 ±1MHz
  • Output VSWR:
  • Band width: 20MHz
  • Impedance: 50Ω
  • Polarization: RHCP
  • LNA gain (without cable): 30 ±2dB type (3.3 to 5V)
  • Noise figure:
  • DC voltage: 3.3 to 5V
  • DC current: 50mA (maximum)
  • Working power: 300mW (minimum) and 1.5W (maximum)
  • Weight: 73g
  • Size: 46 x 38 x 13mm
  • Cable: RG174 (3, 5m or others)
  • Connectors: SMA/SMB/MCX/MMCX or others
  • Mounting: magnetic base
  • Housing: black matte surface
  • Working temperatures: -40 to 85℃
  • Humidity range: 95 to 100% RH
  • Weather-proof: IP67
