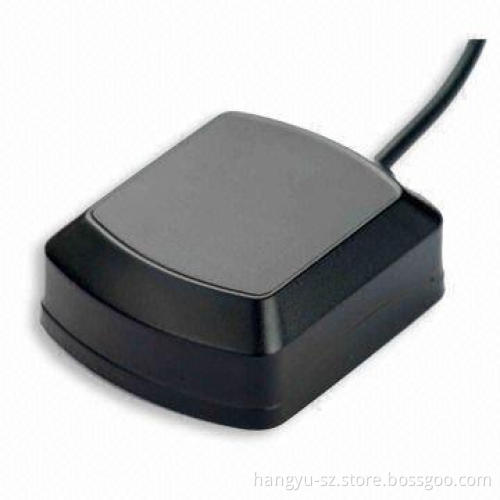

GPS and Glonass Antenna with 1,575.42/1,602MHz Frequency, High Gain
  • GPS and Glonass Antenna with 1,575.42/1,602MHz Frequency, High Gain
GPS and Glonass Antenna with 1,575.42/1,602MHz Frequency, High Gain

GPS and Glonass Antenna with 1,575.42/1,602MHz Frequency, High Gain

Get Latest Price
Payment Type:
PayPal, L/C at Sight, Western Union or T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: PayPal, L/C at Sight, Western Union or T/T
Product Description
Product Description
  • Frequencies: 1,575.42/1,602MHz
  • Center frequency: 1,590MHz
  • Output VSWR:
  • Impedance: 50 Ohms
  • Polarization: R.H.C.P
  • Peak gain: 5dbi (1,575MHz)/4dbi (1,602MHz)
  • Noise figure:
  • Voltage: 2.7 to 5.5V DC
  • Current: 50mA (maximum)
  • Work power:
  • Minimum: 300mW
  • Maximum: 1.5W
  • Mechanical
  • Weight: 66g
  • Size: 36 x 45 x 15mm
  • Cable: RG174, 3 meters or other
  • Connector: SMA male (nickel) or other
  • Mounting: magnetic and adhesive base
  • Housing: ABS
  • Working temperatures: -40 to 85 degrees Celsius
  • Humidity range: 95 to 100%RH
