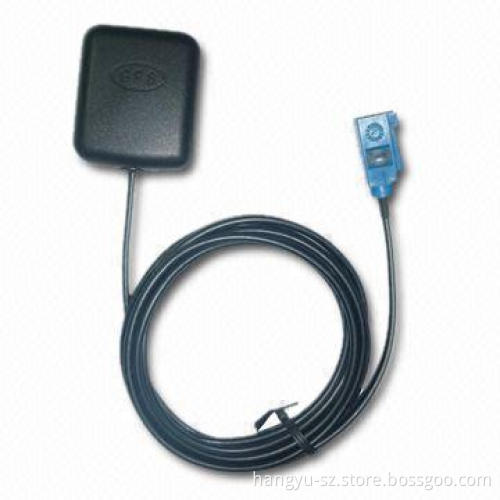

GPS Antenna, High-gain with Fakra Connector

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Center frequency: 1575.42MHz, ±2

Output VSWR: ≤2.0

Band width: 5MHz

Impedance: 50Ω

Polarization: RHCP

LNA gain (without cable): 30dBi ±2 type (3.3 to 5V)

Noise figure:

Voltage: 3.3 to 5V DC

DC current: 50mA (maximum)

Working power: 300mW (minimum) and 1.5W (maximum)

Cable: RG174, 3 or 1.5m or others

Connector: SMA/SMB/MCX/MMCX or others

Mounting: magnetic base

Housing: black matte surface

Working temperature: -30 to 85°C

Working humidity: 95 to 100% RH

Weatherproof: IP67

Size: 46 x 38 x 13mm

Weight: 75g
