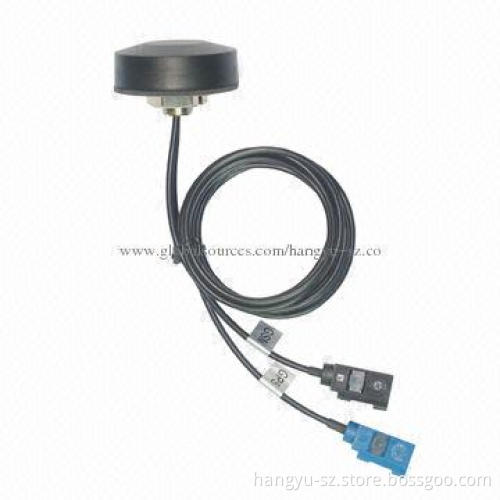

GPS+GSM Combined Antenna with 3 to 5V DC Voltage, 50W Power
  • GPS+GSM Combined Antenna with 3 to 5V DC Voltage, 50W Power
GPS+GSM Combined Antenna with 3 to 5V DC Voltage, 50W Power

GPS+GSM Combined Antenna with 3 to 5V DC Voltage, 50W Power

Get Latest Price
Payment Type:
TT, Western Union, L/C at sight, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: TT, Western Union, L/C at sight, PayPal
Product Description
Product Description
  • Description:
    • It is applied to car navigation, logistics positioning and more
  • Electrical specifications:
    • Frequency range: 1575.42, 824 to 960/1,710 to 2,170MHz
    • Bandwidth: 10, 136/460MHz
    • Gain: 28, 2dBi
    • VSWR: ≤1.5, ≤2.0
    • Voltage: 3 to 5V DC
    • Noise figure: ≤1.5dBi
    • Nominal impedance: 50Ω
    • Polarization: RHCP vertical
    • Power: 50W
  • Mechanical specifications:
    • Cable length: 3m
    • Connector: FAKRA or customized
    • Antenna dimensions: Φ46 x 15mm
    • Weight: 160g
    • Mounting: screw
    • Temperature: -40 to ＋60 degrees Celsius
    • Humidity: 5 to 95% RH
  • It is applied to car navigation, logistics positioning and more
  • Frequency range: 1575.42, 824 to 960/1,710 to 2,170MHz
  • Bandwidth: 10, 136/460MHz
  • Gain: 28, 2dBi
  • VSWR: ≤1.5, ≤2.0
  • Voltage: 3 to 5V DC
  • Noise figure: ≤1.5dBi
  • Nominal impedance: 50Ω
  • Polarization: RHCP vertical
  • Power: 50W
  • Cable length: 3m
  • Connector: FAKRA or customized
  • Antenna dimensions: Φ46 x 15mm
  • Weight: 160g
  • Mounting: screw
  • Temperature: -40 to ＋60 degrees Celsius
  • Humidity: 5 to 95% RH
