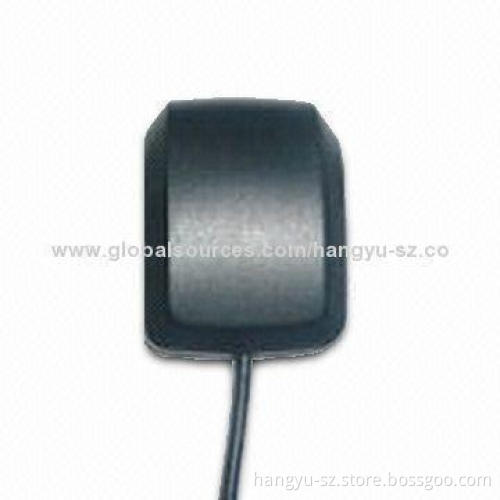

GPS Antenna, Used for Navigation, 20MHz Band Width and 50 Ohms Impedance

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	PayPal, L/C at Sight, Western Union, T/T

Product Description

Technical data:

Mechanical data:

Center frequency: 1575.42MHz ±1MHz

Output VSWR: <2.0

Band width: 20MHz

Impedance: 50 Ohms

Polarization: R.H.C.P

LNA gain (without cable): 30 ±2dB type (3.3 to 5V)

Noise figure: <2dB (maximum) (at 3.3V)

DC voltage: 3.3 to 5V

DC current: 50mA (maximum)

Working power: 300mW (minimum) and 1.5W (maximum)

Weight: 73g

Size: 50 x 37 x 18mm

Cable: RG174, 3m

Connector: MCX

Mounting: magnetic base

Housing: black matte

Working temperatures: -40 to 85℃

Humidity range: 95 to 100% RH

Weatherproof: IP67
