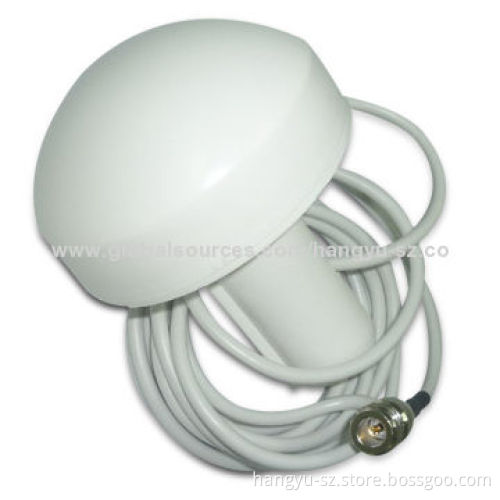

GPS Marine Antenna with 20MHz Bandwidth, 3.3 to 5V DC Voltages, Measures 96 x 126mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, Western Union, L/C at Sight

Product Description

Technical:

Mechanical:

Center frequency range: 1,575-1,560MHz (center: 1,590MHz)

Output VSWR: 1.5

Bandwidth: 20MHz

Impedance: 50Ω

Polarization: RHCP

LNA gain (without cable): 37dB typical (3.3 to 5V)

Noise figure: <1.5dB (maximum) (at 3.3V)

Voltages: 3.3 to 5V DC

DC current: 50mA (maximum)

Working power: 300mW (minimum), 1.5W (maximum)

Weight: 105g

Size: 96 x 126mm

Cable: SYV-50-3, 0.3m or others

Connector: N-female or other

Mounting: magnetic base

Housing: black mouse shape surface

Eco-friendly

Working temperatures: -40 to 85°C

Humidity range: 95 to 100% RH

Weatherproof: IP67
