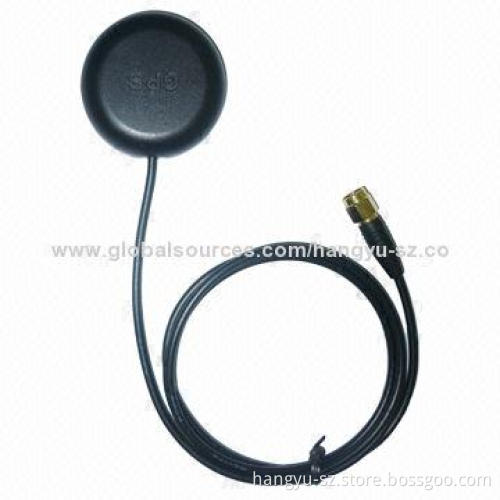

GPS Active Antenna, SMA-M Connector, <1.5dB Noise and 1.5:1 VSWR
  • GPS Active Antenna, SMA-M Connector, <1.5dB Noise and 1.5:1 VSWR
GPS Active Antenna, SMA-M Connector, <1.5dB Noise and 1.5:1 VSWR

GPS Active Antenna, SMA-M Connector, <1.5dB Noise and 1.5:1 VSWR

Get Latest Price
Payment Type:
TT, Western Union, L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: TT, Western Union, L/C at Sight
Product Description
Product Description
  • Ideal for car navigation, logistics positioning and more
  • Electrical specifications:
    • Frequency range: 1575.42MHz
    • Bandwidth: 10MHz
    • Gain: 28dBi
    • VSWR: ≤1.5
    • DC voltages: 3 to 5V
    • Noise figure: ≤1.5dBi
    • Nominal impedance: 50Ω
    • Polarization: RHCP
    • Maximum power: 50W
  • Mechanical specifications:
    • Cable (RG174): 2m
    • Connector: FAKRA or customized
    • Antenna dimensions: Ø44 x 12mm
    • Weight: 45g
    • Mounting: 3M
    • Temperatures: -40 to 60°C
    • Humidity range: 5 to 95% RH
    • Waterproof: IP67
  • Frequency range: 1575.42MHz
  • Bandwidth: 10MHz
  • Gain: 28dBi
  • VSWR: ≤1.5
  • DC voltages: 3 to 5V
  • Noise figure: ≤1.5dBi
  • Nominal impedance: 50Ω
  • Polarization: RHCP
  • Maximum power: 50W
  • Cable (RG174): 2m
  • Connector: FAKRA or customized
  • Antenna dimensions: Ø44 x 12mm
  • Weight: 45g
  • Mounting: 3M
  • Temperatures: -40 to 60°C
  • Humidity range: 5 to 95% RH
  • Waterproof: IP67
