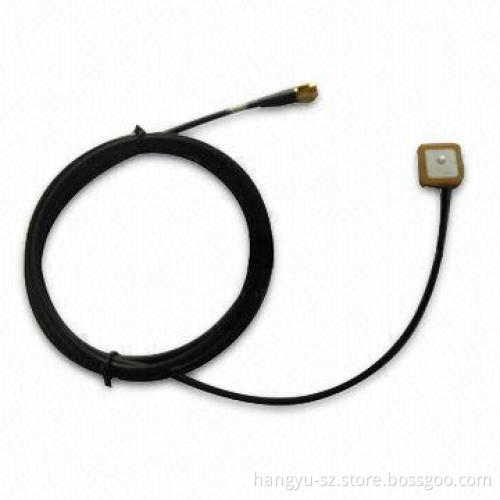

GPS Antenna with 50mA DC Current and 3.3 to 5V DC Voltage, 20MHz Bandwidth

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Technical data:

Mechanical data:

Environmental:

Center frequency: 1575.42MHz, ±1MHz

Output VSWR: <2.0

Bandwidth: 20MHz

Impedance: 50Ω

Polarization: R.H.C.P

LNA gain (without cable): 30, ±2dB type (3.3 to 5V)

Noise figure: <2dB (maximum) (at 3.3V)

DC voltage: 3.3 to 5V

DC current: 50mA (maximum)

Work power: 300mW (minimum) and 1.5W (maximum)

Weight: 73g

Dimensions: 18 x 18 x 4mm

Cable: LMR100 3 meters or 5 meters or others

Connector: SMA/SMB/MCX/MMCX or others

Mounting: magnetic base

Housing: black matte surface

Working temperatures: -40 to 85°C

Humidity range: 95 to 100%

Weatherproof: IP67
