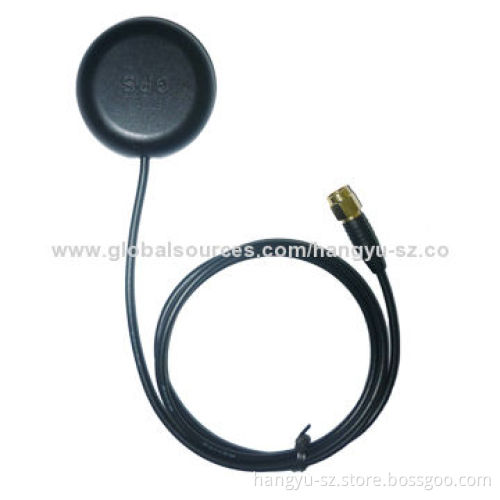

GPS + Glonass Antenna with 28dBi Gain and 50W Maximum Power
  • GPS + Glonass Antenna with 28dBi Gain and 50W Maximum Power
GPS + Glonass Antenna with 28dBi Gain and 50W Maximum Power

GPS + Glonass Antenna with 28dBi Gain and 50W Maximum Power

Get Latest Price
Payment Type:
T/T, Western Union, L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union, L/C at Sight
Product Description
Product Description
  • Description:
    • It is applied to car navigation, logistics positioning and more
  • Electrical:
    • Frequency range: 1575.42 to 1602MHz
    • Bandwidth range: 5 to 10MHz
    • Gain: 28dBi
    • VSWR: ≤1.5
    • DC voltage: ≤1.5V
    • Noise figure range: 3 to 5dBi
    • Nominal impedance: 50Ω
    • Polarization: RHCP
    • Maximum power: 50W
  • Mechanical:
    • Cable: RG174 2m
    • Connectors: Fakra or customized
    • Antenna dimensions: 46 x 38 x 13mm
    • Weight: 75g
    • Mounting: magnet
    • Temperature range: -40 to 60°C
    • Humidity range: 5 to 95% RH
    • Waterproof: IP67
  • It is applied to car navigation, logistics positioning and more
  • Frequency range: 1575.42 to 1602MHz
  • Bandwidth range: 5 to 10MHz
  • Gain: 28dBi
  • VSWR: ≤1.5
  • DC voltage: ≤1.5V
  • Noise figure range: 3 to 5dBi
  • Nominal impedance: 50Ω
  • Polarization: RHCP
  • Maximum power: 50W
  • Cable: RG174 2m
  • Connectors: Fakra or customized
  • Antenna dimensions: 46 x 38 x 13mm
  • Weight: 75g
  • Mounting: magnet
  • Temperature range: -40 to 60°C
  • Humidity range: 5 to 95% RH
  • Waterproof: IP67
