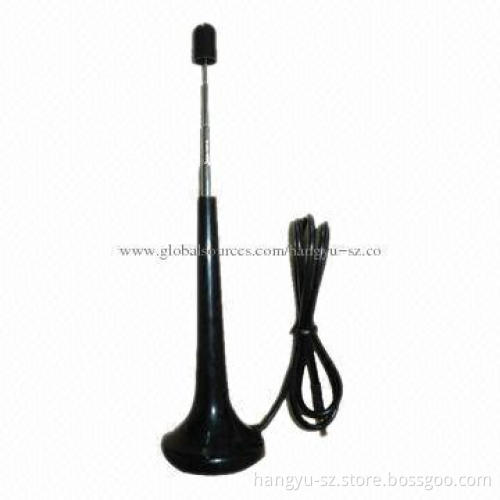

3.0dBi Passive Digital DVB-T Antenna with MCX Connector and 56/390MHz Bandwidth
  • 3.0dBi Passive Digital DVB-T Antenna with MCX Connector and 56/390MHz Bandwidth
3.0dBi Passive Digital DVB-T Antenna with MCX Connector and 56/390MHz Bandwidth

3.0dBi Passive Digital DVB-T Antenna with MCX Connector and 56/390MHz Bandwidth

Get Latest Price
Payment Type:
TT, Westen Union, L/C at Sight, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: TT, Westen Union, L/C at Sight, PayPal
Product Description
Product Description
  • Specifications:
    • Frequency range: 174 to 230/470 to 860MHz
    • Bandwidth: 56/390MHz
    • Gain: 3.0dBi
    • VSWR: ≤2.0
    • Nominal impedance: 75Ω
    • Polarization: vertical
    • Maximum power: 50W
    • Connector: MCX
    • Cable length: 1.5m
    • Antenna dimensions: Φ43 × 365mm (shortest 120)
    • Weight: 41g
    • Installation magnet
    • Temperature: -40 to ＋60°C
    • Humidity: 5 to 95% RH
  • Applied to mobile TV terminals
  • Frequency range: 174 to 230/470 to 860MHz
  • Bandwidth: 56/390MHz
  • Gain: 3.0dBi
  • VSWR: ≤2.0
  • Nominal impedance: 75Ω
  • Polarization: vertical
  • Maximum power: 50W
  • Connector: MCX
  • Cable length: 1.5m
  • Antenna dimensions: Φ43 × 365mm (shortest 120)
  • Weight: 41g
  • Installation magnet
  • Temperature: -40 to ＋60°C
  • Humidity: 5 to 95% RH
