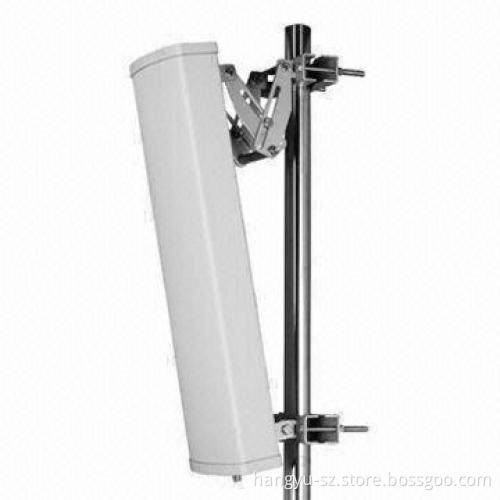

Base Station Antenna with 17dBi Gain and 2,400 to 2,500MHz Frequency Range
  • Base Station Antenna with 17dBi Gain and 2,400 to 2,500MHz Frequency Range
Base Station Antenna with 17dBi Gain and 2,400 to 2,500MHz Frequency Range

Base Station Antenna with 17dBi Gain and 2,400 to 2,500MHz Frequency Range

Get Latest Price
Payment Type:
T/T, PayPal, Western Union, L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, PayPal, Western Union, L/C at Sight
Product Description
Product Description
  • Technical data:
    • Frequency range: 2,400 to 2,500MHz
    • Bandwidth: 100MHz
    • Gain: 17dBi
    • E-plane: 6°
    • H-plane: 120°
    • F/B ratio: ≥20dB
    • V.S.W.R: ≤1.5
    • Impedance: 50Ω
    • Polarization: vertical
    • Maximum power: 100W
    • Connector type: N-K
    • Antenna dimension: 1,340 x 180 x 90mm
    • Weight: 5kg
    • Mounting hardwares: Φ40 to 80mm
