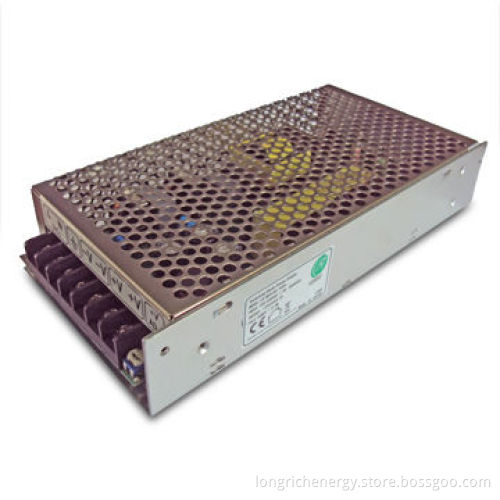

SMPS 150W Switching Power Supply, 48V/3A
- Payment Type:
- T/T in Advance
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | T/T in Advance |
|---|
Product Description
Product Description
- High efficiency, long lifespan and high reliability
- Built-in PFC function (optional)
- Over-current and short-circuit protections
- Automatic protection
- Cooling by free air convection
- 100% full load burn-in test
- CE certified
- Meets EMC EN 60950-1/EN 61000-6/EN 61000-3 standard
- AC input:
- Input voltage range: 110 to 250V
- Frequency range: 50 to 60Hz
- Power factor (PF): >0.99
- DC output:
- Output power: 150W
- Output voltage: 48V
- Output current: 3.2A
- Efficiency: >85%
- LF ripple: 0.03 to 0.05V
- Standby power: 0.28 to 0.6W
- Leakage current: 0.3mAh
- Dimensions: (L) 200 x (W) 98 x (H) 38mm (aluminum housing)
- Input voltage range: 110 to 250V
- Frequency range: 50 to 60Hz
- Power factor (PF): >0.99
- Output power: 150W
- Output voltage: 48V
- Output current: 3.2A
