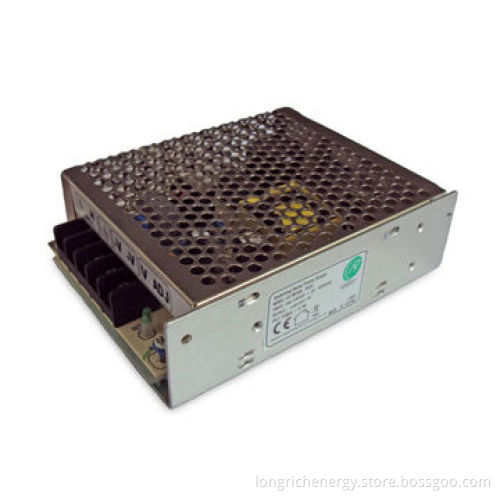

SMPS, 5V/8A, 40W switching power supply

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

High efficiency/reliability, long lifespan

Over-current, short-circuit and automatic protections

Cooling by free air convection

100% full load burn-in test

With CE, EMC EN60950-1/EN61000-6/EN61000-3 marks

AC inputs:

DC outputs:

Efficiency: 77%

Output ripple: 0.2 to 0.7Vp-p at 10K to 20MHz BPF

Standby power: 0.27 to 1.3W

Leakage current: 0.01 to 0.27mA

Withstand voltage: 1.3 to 1.71mA at input to output 1,500V AC, 50Hz, 1minute

Dimensions (L x W x H): 129 x 98 x 38mm (aluminum housing)

Input voltage range: 110 to 250V

Frequency range: 50/60Hz

Input current: 1A to 4.2A

Power factor (PF): >0.6

Rated power: 40W

Output voltage: 5V DC

Output current:: 8A
