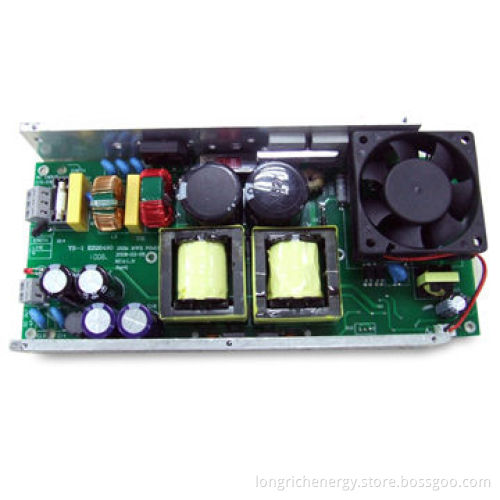

SMPS, 48V 6.5A Charger ,Lead Acid Battery Charger, 350W

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Inputs: 88 to 130V AC/176 to 264V AC, selectable by switch

Efficiency: 87% typical

AC currents: 4A/115V AC, 2.5A/230V AC

Inrush currents: 18A/115V AC, 36A/230V AC

Leakage current: 2mA/240V AC maximum

Switching frequency: 90kHz (approximately)

Output: 54V DC 6.5A

Ripple and noise (Vp-p): < 150mV

Setup, rise and hold time: 2,000 and 20ms at full load

Protection: over voltage, over temperature, over-load, short-circuit

U type aluminum case

Dimension (L x W x H): 230 x 101 x 40mm
