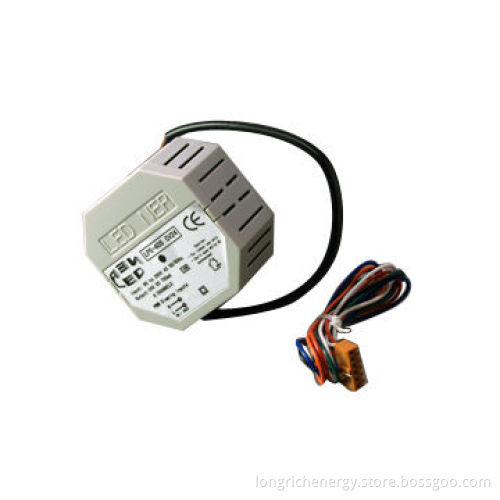

4 channels power supply, dimmable LED power supply, PWM

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Continuous power recommended: 18W

Input specifications: 90 to 260V AC/0.1 A

Output specifications: 24V DC/0.75A

4 channels with common "+"

Power distribution: 4X4,5W or 1x18W for example

Thermal protection

Dimming by pulse width modulation

(PWM) for a perfect LED dimming

PWM Input on 6-pin brown connector compatible with all

the other LED NER interfaces and power supplies

Cable lengths: power 18cm ; signals 30cm

Comes with link wires and connector

Compact size: (55 x 55 x 30mm)

Case materials: PC + ABS
