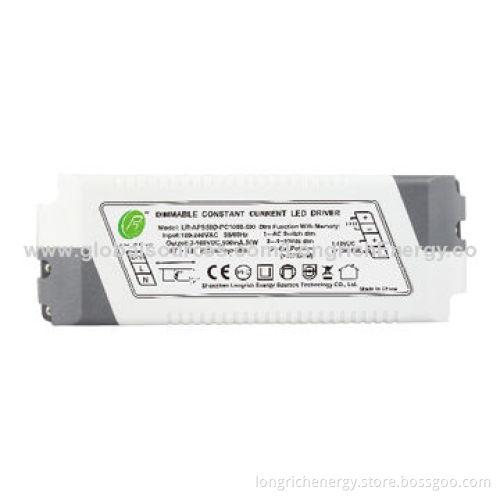

1-10V Dimmable LED Driver, 50W, OEM Orders Welcomed

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Can vary light intensity of LED load by means of 1 to 10V control signal, potentiometer, 1 to 10V DC rotary dimmer and AC switch which can be modified to open push button

Wide range of output voltage: 3 to 100V DC

Output current: 500mA constant current

Power: 50W

Built-in active PFC

High-efficiency, up to 85%

Protection: short-circuit with hiccup mode, overload

Natural air convection

Class II, no FG

Plastic case, IP20 for indoor use only

Optional multi-dim function, suitable for LED lighting applications

High-current accuracy to make LED lifespan longer

Functions:

100 to 240V AC switch dim:
- On/off: short push (50 to 500ms) on push button
- Step-less dimming: long push and hold (>500ms) on push button
- For tuning of light level: with every 2nd long push, light level goes opposite direction
- Built-in with permanent memory
- Synchronization: no limitation on number of drivers when connected to same switch
1 to 10V DC dim: 1 to 10V DC dimmer and ext pot dimmer
Memory function: power offer memory function to memorize light intensity, soft light on to memorized intensity, good to eyes
Dim range and effect: 0.3 to 100% step-less dim to make light intensity vary smoothly, no flickering

100 to 240V AC switch dim:

On/off: short push (50 to 500ms) on push button
Step-less dimming: long push and hold (>500ms) on push button
For tuning of light level: with every 2nd long push, light level goes opposite direction
Built-in with permanent memory
Synchronization: no limitation on number of drivers when connected to same switch

1 to 10V DC dim: 1 to 10V DC dimmer and ext pot dimmer

Memory function: power offer memory function to memorize light intensity, soft light on to memorized intensity, good to eyes

Dim range and effect: 0.3 to 100% step-less dim to make light intensity vary smoothly, no flickering

On/off: short push (50 to 500ms) on push button

Step-less dimming: long push and hold (>500ms) on push button

For tuning of light level: with every 2nd long push, light level goes opposite direction

Built-in with permanent memory

Synchronization: no limitation on number of drivers when connected to same switch
