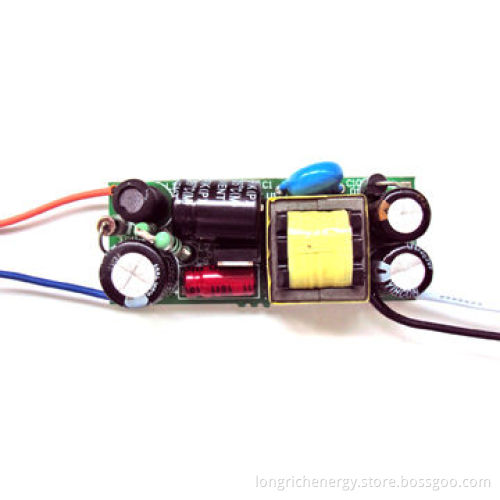

5 to 7W LED Driver for LED Lighting with Built-in Constant Current Limiting Circuit
  • 5 to 7W LED Driver for LED Lighting with Built-in Constant Current Limiting Circuit
5 to 7W LED Driver for LED Lighting with Built-in Constant Current Limiting Circuit

5 to 7W LED Driver for LED Lighting with Built-in Constant Current Limiting Circuit

Get Latest Price
Payment Type:
T/T in advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in advance
Product Description
Product Description
  • Features:
    • Built-in constant current limiting circuit (C.C.mode)
    • Built-in active PFC function (optional)
    • Short-circuit protection, over voltage protection and open loop protection
    • Cooling by free air convection
    • Compact dimension easy to install (internal power supply)
    • Customized specification requirements accepted
    • CE-approved
    • Meets EMC EN55015, EN61547, EN61000-3, EN61347-2-13, EN61347-1 standards
    • Suitable for all kinds of LED lighting-spot lights, LED bulbs and candle lamps, GU10 and E27
  • Electrical specifications:
    • Inputs:
      • Voltages: 100 to 240V AC
      • Voltage frequencies: 50 to 60Hz
      • Current: maximum 0.2A
      • Idle power: <0.3W
    • Outputs:
      • Voltage range: 10 to 35V
      • Load current (constant current): 200 to 700mA ±2%
  • Key specifications:
    • Max.output power: 8W
    • Stanby power: 0.24W (110V input), 0.425W (230V input)
    • Efficiency: 81.54%( 110V input), 80.86% (230V input)
    • Ripple: <160mV
  • Constant currents:
    • Outputs:
      • 5W, 7 to 10V DC, 700mA±2%
      • 7W, 15 to 22V DC, 320mA±2%
      • 7W, 28 to 35V DC, 200mA±2%
    • Protections:
      • Short-circuit protection
      • Over-voltage protection
      • Open-loop protection
    • Dimensions (L x W x H): 50 x 20 x 18mm
  • Built-in constant current limiting circuit (C.C.mode)
  • Built-in active PFC function (optional)
  • Short-circuit protection, over voltage protection and open loop protection
  • Cooling by free air convection
  • Compact dimension easy to install (internal power supply)
  • Customized specification requirements accepted
  • CE-approved
  • Meets EMC EN55015, EN61547, EN61000-3, EN61347-2-13, EN61347-1 standards
  • Suitable for all kinds of LED lighting-spot lights, LED bulbs and candle lamps, GU10 and E27
  • Inputs:
    • Voltages: 100 to 240V AC
    • Voltage frequencies: 50 to 60Hz
    • Current: maximum 0.2A
    • Idle power: <0.3W
  • Outputs:
    • Voltage range: 10 to 35V
    • Load current (constant current): 200 to 700mA ±2%
  • Voltages: 100 to 240V AC
  • Voltage frequencies: 50 to 60Hz
  • Current: maximum 0.2A
  • Idle power: <0.3W
  • Voltage range: 10 to 35V
  • Load current (constant current): 200 to 700mA ±2%
  • Max.output power: 8W
  • Stanby power: 0.24W (110V input), 0.425W (230V input)
  • Efficiency: 81.54%( 110V input), 80.86% (230V input)
  • Ripple: <160mV
  • Outputs:
    • 5W, 7 to 10V DC, 700mA±2%
    • 7W, 15 to 22V DC, 320mA±2%
    • 7W, 28 to 35V DC, 200mA±2%
  • Protections:
    • Short-circuit protection
    • Over-voltage protection
    • Open-loop protection
  • Dimensions (L x W x H): 50 x 20 x 18mm
  • 5W, 7 to 10V DC, 700mA±2%
  • 7W, 15 to 22V DC, 320mA±2%
  • 7W, 28 to 35V DC, 200mA±2%
  • Short-circuit protection
  • Over-voltage protection
  • Open-loop protection
