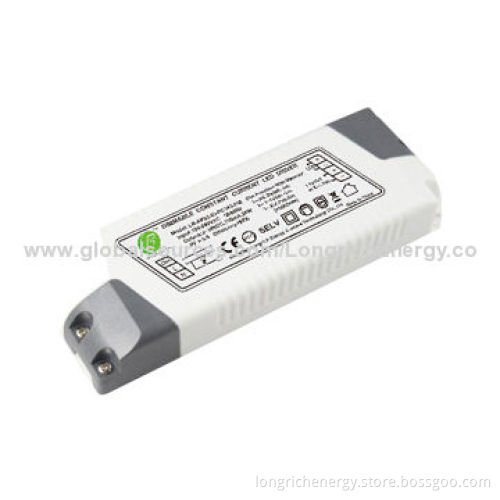

1-10V Dimmable LED Driver, 3-68.5V DC Output Voltage

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Description:

The LR-APS24D-PC685-350 can vary light intensity of LEDs load by means of 1 to 10V control signal, potentiometer, 1 to 10V DC rotary dimmer and AC switch which can be modified to open push button
Wide range of output voltage 3-68.5V DC, 24W full power at 350mA, can power 1-24 pieces of 1W high-power LED or 1-8 pieces of 3W high-power LED, also suitable for COB and LED strip

Specifications:

Universal input voltage: 90 to 264V AC, 50/60Hz
Built-in active PFC
High-efficiency, up to 82%
Protections: short-circuit with hiccup mode, overload
Natural air convection
Class II, no FG
Plastic case, IP20 for indoor use only
Optional multi-dim function, suitable for LED lighting application
High-current accuracy to make LED lifespan longer

Functions:

100 to 240V AC switch dim
On/off: short push (50 to 500ms) on push button
Stepless dimming: long push and hold (>500ms) on push button
For tuning of light level: with every 2nd long push, light level goes opposite direction
Built-in with permanent memory
Synchronization: no limitation on number of drivers when connected to same switch
1 to 10V DC dim: 1 to 10V DC dimmer and ext pot dimmer
Multiple current set: 300, 450, 500, 650 and 700mA select, set dipswitch
Memory function: power offer memory function to memorize light intensity, soft light on to memorized intensity, good to eyes
Dim range and effect: 0.3 to 100% stepless dim to make light intensity vary smooth, no flickering
Warranty: 2 years
