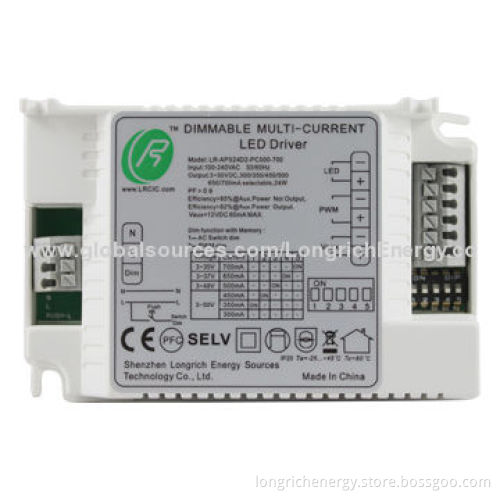

1-10V Dimmable Constant Current LED Driver, 3 to 50V DC Output Voltage

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Please refer to the output current selection as below:

It can vary the light intensity of the LED load by means of a PWM control signal, AC push button, which can use the normal wall mount AC switch to modify
Wide range of output voltage, 3 to 50V DC, can power 1 to 14 pieces 1W high-power LEDs or 1 to 8 pieces 3W high-power LEDs, also suitable for COB and LED strip
Universal input voltage: 90 to 264V AC, 50/60Hz
Built-in active PFC
High-efficiency up to 85%
Protections: short-circuit with hiccup mode, overload
Natural air convection
Class II, no FG
Plastic case, IP20 for indoor use only
Optional multiple dim functions suitable for LED lighting application
High-current accuracy to make LED lifespan longer
2-year warranty

Dimming functions:

PWM dimming
AC push dimming

Other functions: Aux, power circuit, output 12V DC and 60mA maximum for fans or other electronic components

It can vary the light intensity of the LED load by means of a PWM control signal, AC push button, which can use the normal wall mount AC switch to modify

Wide range of output voltage, 3 to 50V DC, can power 1 to 14 pieces 1W high-power LEDs or 1 to 8 pieces 3W high-power LEDs, also suitable for COB and LED strip

Universal input voltage: 90 to 264V AC, 50/60Hz

Built-in active PFC

High-efficiency up to 85%

Protections: short-circuit with hiccup mode, overload

Natural air convection

Class II, no FG

Plastic case, IP20 for indoor use only

Optional multiple dim functions suitable for LED lighting application

High-current accuracy to make LED lifespan longer

2-year warranty

PWM dimming

AC push dimming
