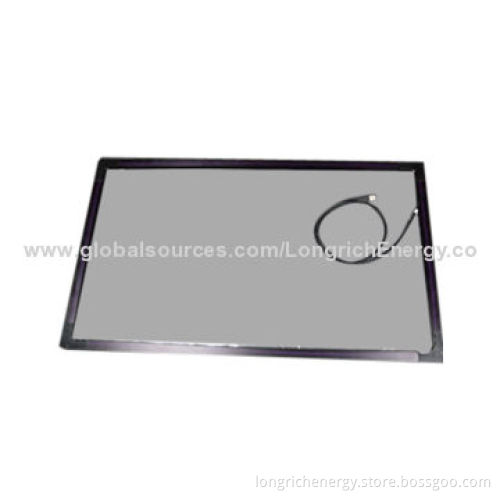

OTP/Optical Touch Screen Overlay, 755 x 450mm Maximum DimensionsNew

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

General parameters:

Maximum dimensions: 755 x 450mm
Touch area: 705 x 400mm
FPC: forged copper
Material: ABC, 90°C temperature-resistant
Glass (no standard component): tempered glass, 3/4mm
Response speed: ≤6ms
Resolution reported by USB: 32,767 x 32,767
Minimum recognition objects: 7mm
Touch accuracy: ±2mm, over 90% in sensitive touch area
Touch object: any opaque object
Touch time: no limit
Interface: USB
Working temperature: 0 to 70°C
Working current: 500mA
Light bar: cross-section: 5.7 x 5.5mm
Infrared lamp: emitting angle 30°, 100mA
Wire: 40pf/m

Specifications:

Touch object: finger, glove hand or other opaque object
Any opaque objects can achieve 2 points touching
Touching track reaches 9mm at large
Larger touching area
Scan speed: 100 to 120fps
Driver support: supported by Microsoft WHQL
Compatible OS: Microsoft's Windows 7/8, Google's Android and Linux
Water, dust and light-resistant in special design
Flexible and easy way of installation, wider application circumstance

Applications:

Kiosks, ATM, exhibitions, education and trainings, business offices, advertising, media, game consoles, interactive advertising, medical equipment industrial, multiple medias inquiries, POS machines, automatic ticketing, self service retails, public receptions, government applications securities military use, interactive whiteboard

Maximum dimensions: 755 x 450mm

Touch area: 705 x 400mm

FPC: forged copper

Material: ABC, 90°C temperature-resistant

Glass (no standard component): tempered glass, 3/4mm

Response speed: ≤6ms

Resolution reported by USB: 32,767 x 32,767

Minimum recognition objects: 7mm

Touch accuracy: ±2mm, over 90% in sensitive touch area

Touch object: any opaque object

Touch time: no limit

Interface: USB

Working temperature: 0 to 70°C

Working current: 500mA

Light bar: cross-section: 5.7 x 5.5mm

Infrared lamp: emitting angle 30°, 100mA

Wire: 40pf/m

Touch object: finger, glove hand or other opaque object

Any opaque objects can achieve 2 points touching

Touching track reaches 9mm at large

Larger touching area

Scan speed: 100 to 120fps

Driver support: supported by Microsoft WHQL

Compatible OS: Microsoft's Windows 7/8, Google's Android and Linux

Water, dust and light-resistant in special design

Flexible and easy way of installation, wider application circumstance

Kiosks, ATM, exhibitions, education and trainings, business offices, advertising, media, game consoles, interactive advertising, medical equipment industrial, multiple medias inquiries, POS machines, automatic ticketing, self service retails, public receptions, government applications securities military use, interactive whiteboard
