Product Description

Specifications:

Double PWM signal generator (pulse width modulation)

Frequency: 250Hz +/- 20%

Potentiometer of high quality, ALPS (this brand is used on most professional mixing desks)

Notched potentiometers

Two PWM signal outputs in open collector (50V max)

On/off function by pressing the first button

Blue LED under the button for a discreet night lighting

Reset terminal so that each panel can take control

Push buttons of the two potentiometers accessible on terminals

Integration version: brushed stainless steel, fixed by four 3mm countersunk head screws

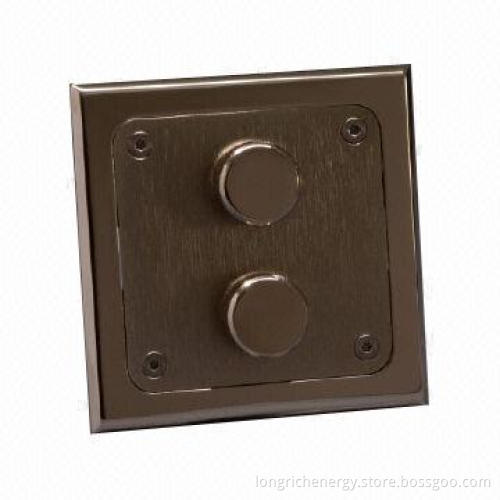

Wall panel version: Massive milled brass frame, mirror polished, brass nickered front plate, brush finish, stainless steel, mounting plate, in-wall wall panel box & stainless steel screws

Supply range: 12 to 24V/50mA

With CE marking/ETL listed USA and Canada N°4007092

Recommended applications:

Direct PWM dimming of LED NER power supplies like LPS-225/230/3100 and LPS-325CC

Control of twin white fixtures in a room

Wall control of 2 different areas of white lighting

Control of shop windows and furniture lighting

Toggle function with a change of colors, up to 6 wall panels
