Product Description

Specifications:

PWM signal generator (pulse width modulation)

Frequency: 250Hz +/-20%

Potentiometer of high quality, «ALPS» (this brand is used on most professional mixing desks)

The slider allows a viewing of the power

PWM output: 4A

High quality MOS-FET transistor

Efficiency: more than 99%

PWM signal output for LPS-3100, LPS-325 or LPS-175 for example on/off function by push-button, on/off control signal output allowing the simultaneous starting of other wall panels

Can also work for dimming a constant current power supply

Be careful not to exceed 35V

Connector for receiver and radio remote control

High quality luminous blue MEC push-button guaranteed for 10,000,000 uses

Integration version: brushed stainless steel, fixed by four 3mm countersunk head screws

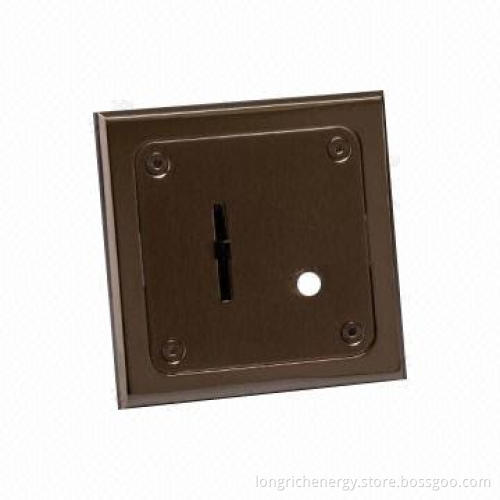

Wall panel version: Massive milled brass frame, mirror polished, brass nickel-ed front plate, brush finish and stainless steel, mounting plate, in-wall wall panel box and stainless steel screws

CE marking/ETL listed USA and Canada N°4007092
