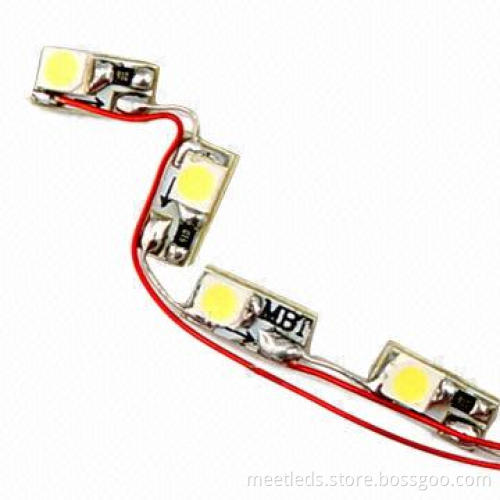

8 x 4mm 12V/3.12W One Single Chip 3528 SMD Mini LED Module for Mini Channel Letters, Signage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Features:

Can be bent arbitrary, widely used for indoor mini letters, numbers and signage which has depth of 4-6mm
Double RF4 fiberglass panels provide a good heat dissipation
Cuttable by every three modules, 50,000-hour long lifespan

Applications:

Small stroke signage, mini plastic letters, mini metal letters, mini acrylic letters, mini LED channel letters

Operating voltage: 12V DC

Power consumption: 3.12W/0.5 meter

Dimensions: 8 x 4mm

LED type: Epistar single chip 3528 SMD

Number per 0.5 meters: 39 LEDs

Luminous flux per meters: 273-312lm

CRI: 75Ra

Colors: pure white/natural white/warm white/red/green/blue/yellow

Beam angle: 120°

Driven mode: constant voltage

Water resistance: non-waterproof

Operating temperatures: -40-70°C

Can be bent arbitrary, widely used for indoor mini letters, numbers and signage which has depth of 4-6mm

Double RF4 fiberglass panels provide a good heat dissipation

Cuttable by every three modules, 50,000-hour long lifespan

Small stroke signage, mini plastic letters, mini metal letters, mini acrylic letters, mini LED channel letters
