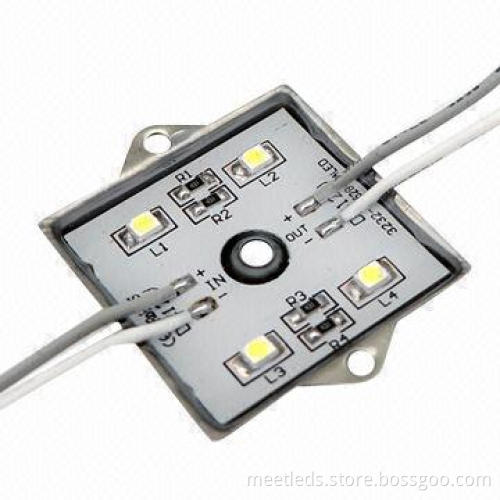

Square 4x SMD3528 Waterproof LED Module for Advertising

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specification:

Features:

Applications:

Small stroke signage, resin plastic letters, resin metal letters, resin acrylic letters, resin LED channel letters

Operating voltage: 12V DC

Power consumption: 0.24W/pcs

Dimensions: 36 * 36mm

LED type: Epistar single Chip SMD 3528

Number of LED in unit: 4 LEDs

Luminous flux:28-32lm

Colors available: pure white/nature white/warm white/red/green/blue/yellow

Beam angle: 120°

Driven mode: constant voltage

Water resistance: waterproof IP65

Operating temperatures: -40-70°C

Widely use in resin channel letters, numbers and signage which depth 8-12mm

Adopts 4pc Epistar single chip SMD3528,7-8lm per LEDs

Double FR-4 fiberglass panels provide a good heat dissipation

10cm gray (positive) and white (negative) wire between every two modules

Waterproof class can be reach IP65, you can use it outdoor

20pcs per string, each module can be cut individually

50,000 hours long lifespan

Small stroke signage, resin plastic letters, resin metal letters, resin acrylic letters, resin LED channel letters
