Product Description

Features:

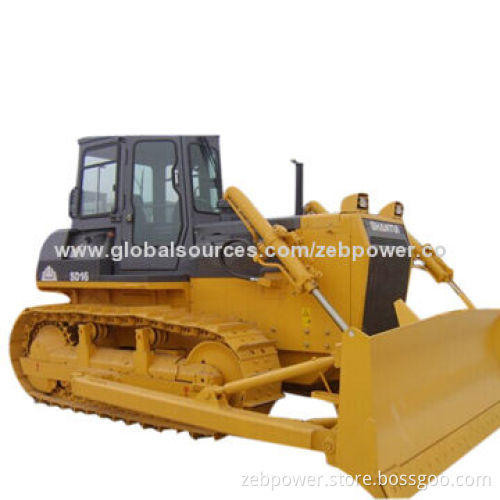

The SD16 is equipped with a hydraulic drive system with hydraulic control technology and has an advanced structure, providing reliable performance and convenient and flexible operation, making the SD16 an ideal construction machine

Specifications:

L×W×H (ripper not included): 5140×3388×3032 mm
Operating weight (Ripper not included): 17T
Engine: Shanghai SC11CB184G2B1/Weichai WD10G178E25
Rated power: 120/1850 kW/rpm
Grade ability: 30°

Blade type:

Straight tilt blade
U blade angle blade

Blade width:

Straight tilt blade 3,388×1,149mm
U blade 3,556×1,120mm
Angle blade: 3,970×1,040mm

Dozing capacity:

Straight tilt blade 4.5 m3
U blade 5 m3
Angle blade: 4.3 m3

Max drop below ground of blade: 540mm

Lift height of blade: 1,095mm

Ripper type: Three-shank ripper

Ripping depth of ripper: 572mm

Lifting height of ripper: 592mm

Number of carriers (each side): 2

Number of track rollers (each side): 6

Number of track shoes (each side): 37

The SD16 is equipped with a hydraulic drive system with hydraulic control technology and has an advanced structure, providing reliable performance and convenient and flexible operation, making the SD16 an ideal construction machine

L×W×H (ripper not included): 5140×3388×3032 mm

Operating weight (Ripper not included): 17T

Engine: Shanghai SC11CB184G2B1/Weichai WD10G178E25

Rated power: 120/1850 kW/rpm

Grade ability: 30°

Straight tilt blade

U blade angle blade

Straight tilt blade 3,388×1,149mm

U blade 3,556×1,120mm

Angle blade: 3,970×1,040mm

Straight tilt blade 4.5 m3

U blade 5 m3
