E2000 Fiber Patch Cord

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

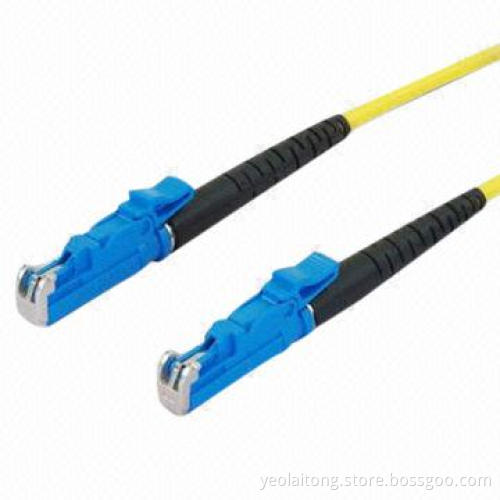

E2000 optical fiber patch cord

Applications:

CATV and multimedia
Active device termination
Telecommunication networks
Sensor system
Interconnection for O/E modules
Data processing networks
Industrial and medical
Premise installations

Features:

Low insertion loss and back reflection loss
Good exchangeability
Good durability
High temperature stability
Standard: Telcordia EN 186 - 270

Specification:

Mode: SM, MM
Polish: UPC, APC, PC
Insertion loss:
- Typical: ≤0.2dB
- Maximum: ≤0.3dB, ≤0.25dB
Return loss: ≥55dB, ≥65dB, ≥30dB
Interchangeability: ≤0.2dB
Repeatability: ≤0.1dB
Durability: ≤0.2dB (1,000 times mating)
Tensile strength: >10kg
Temperature: ≤0.2dB (-40+85 sustain 100 hours)
Humidity: ≤0.2dB (+25+65 93 R.H.100 hours)

Ordering options:

Boot (cable size): 0.9mm, 2.0mm, 3.0mm
Boot color: beige, black, blue, green, red
Fiber type: 9/125um SM, 50/125um MM, 62.5/125um MM
Cable number: OM3, OM4
Ferrule: simplex, duplex, multi-fiber, PC, APC
Length: customized

CATV and multimedia

Active device termination

Telecommunication networks

Sensor system

Interconnection for O/E modules

Data processing networks

Industrial and medical

Premise installations

Low insertion loss and back reflection loss

Good exchangeability

Good durability

High temperature stability

Standard: Telcordia EN 186 - 270

Mode: SM, MM

Polish: UPC, APC, PC

Insertion loss:

Typical: ≤0.2dB
Maximum: ≤0.3dB, ≤0.25dB

Return loss: ≥55dB, ≥65dB, ≥30dB

Interchangeability: ≤0.2dB

Repeatability: ≤0.1dB

Durability: ≤0.2dB (1,000 times mating)

Tensile strength: >10kg

Temperature: ≤0.2dB (-40+85 sustain 100 hours)

Humidity: ≤0.2dB (+25+65 93 R.H.100 hours)

Typical: ≤0.2dB

Maximum: ≤0.3dB, ≤0.25dB

Boot (cable size): 0.9mm, 2.0mm, 3.0mm

Boot color: beige, black, blue, green, red

Fiber type: 9/125um SM, 50/125um MM, 62.5/125um MM

Cable number: OM3, OM4

Ferrule: simplex, duplex, multi-fiber, PC, APC

Length: customized
