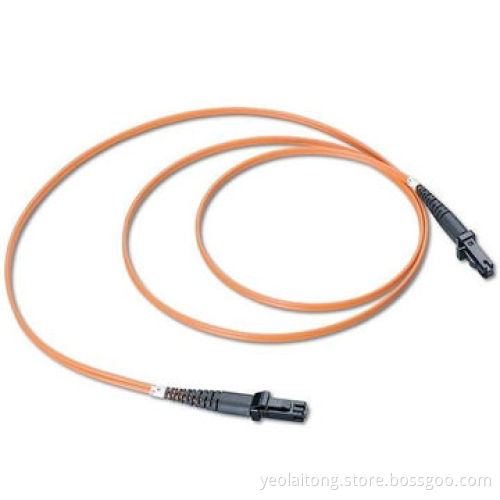

MTRJ fiber patch cord, active device termination

MTRJ fiber patch cord, active device termination

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Applications:

CATV and multimedia
Active device termination
Telecommunication networks
Gigabit Ethernet
Interconnection for O/E modules
Data processing networks
Industrial and medical
Premise installations
Optical switch inter frame connect
Asynchronous transmission mode (ATM)

Features:

Low insertion loss and back reflection loss
Nice e-changeability
Nice durability
High temperature stability
Standard: Telcordia GR-1435-Core complaint

Specifications:

Mode:
- SM
- MM
- Polish
- UPC
- APC
- PC
Insertion loss:
- Typical:
  - ≤0.2dB
  - ≤0.3dB (maximum)
  - ≤0.25dB
Return loss:
- ≥50dB
- ≥65dB
- ≥30dB
- Interchangeability :≤0.2dB
- Repeatability: ≤0.1dB
- Durability: ≤0.2dB (1000 times)
- Vibration: ≤0.2dB (550Hz/1.5mm)
- Temperature: ≤0.2dB (-40 to +85°C sustain, 1000 hours)
- Humidity: ≤0.2dB (+25 to +65°C, 93% RH, 100 hours)
Ordering options:
- Connector colors:
  - Biege
  - Blue
  - Green
- Boot (cable sizes):
  - 0.9mm
  - 2.0mm
  - 3.0mm
- Boot colors:
  - Biege
  - Black
  - Blue
  - Green
  - Gray
  - White
- Fiber type:
  - 9/125μm SM
  - 50/125μm MM
  - 62.5/125μm MM
- Cable number:
  - OM3
  - OM4
- Ferrule:
  - Simplex
  - Duplex
  - Multi-fiber
  - PC
  - APC
Length: customized
