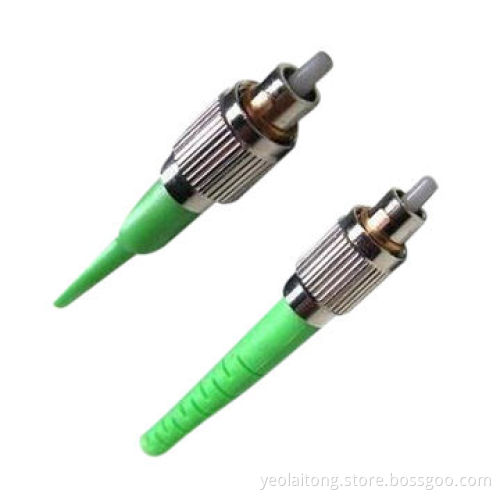

FC APC Fiber-optic Connector

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Applications:

CATV
Active device termination
Telecommunication networks
Metro
Local area networks (LANs)
Data processing networks
Test equipment
Premise installation
Wide area networks (WANs)

Features:

Low insertion loss and back reflection loss
Ferrule end surface predomed
Precision anti-rotation key and corrosion-resistant body
UL rated plastic housing
Boots in variety of colors
Telcordia style boots
Free-floating ceramic ferrule

Standards:

All components and final producs are designed and tested to conform requirement of IEC 60874-7, CECC 86115-801, bellcore/telcordia GR-326, EIA/TIA 604-3A, EIA/TIA 568, ISO/IEC 11801, belcore/telcordia GR-409-CORE, IEC 793, IEC 794-1-E1, IEC 794-1-E3, UL 1666/901 and EIA/TIA 455

Availability:

Connector can be supplied as pre-assembled one-piece connector or as connector kit
Housing kits without ferrule are available

Specifications:

Types:
- Single-mode (UPC)
- Single-mode (APC)
- Multimode
Insertion loss:
- ≤0.2dB
- ≤0.2dB
- ≤0.25dB
Return loss:
- ≥55dB
- ≥65dB
- ≥30dB
Durability
- ≤0.1dB typical change, 1000 times mating
Operating temperature range: -45 to +85 degrees Celcius

Ferrule hole sizes:

125.0+1/-0μm, concertricity: ≤1.0μm
125.0+1/-0μm, concertricity: ≤0.5μm
125.0μm, concertricity: ≤3.0μm
125.3+1/-0um, concertricity: ≤1.0μm
125.3+1/-0μm, Concertricity: ≤0.5μm
127.0μm, concertricity: ≤3.0μm
125.5+1/-0μm, concertricity: ≤1.0μm
125.5+1/-0μm, concertricity: ≤0.5μm
128.0μm, concertricity: ≤3.0μm
126.0+1/-0μm, concertricity: ≤1.0μm
126.0+1/-0μm, concertricity: ≤0.5μm
