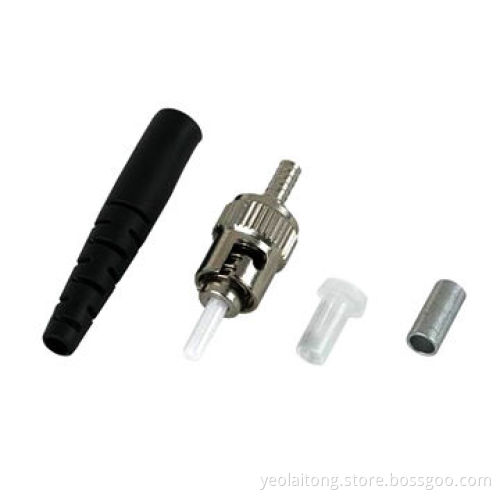

ST fiber optic connector for local area networks

ST fiber optic connector for local area networks

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Applications:

Instrumentation
Local area networks (LANs)
Data processing networks
Premise installation

Features:

Low insertion loss and back reflection loss
Ferrule end surface predomed
High precision alignment
Nickel-plated brass body
Boots in variety of colors
Free-floating ceramic ferrule
Bayonet style housing for easy termination

Standards:

All components and final producs are designed and tested to conform requirement of IEC 60874-7, CECC 86115-801, Bellcore/Telcordia GR-326, EIA/TIA 604-3A, EIA/TIA 568, ISO/IEC 11801, Belcore/Telcordia GR-409-Core, IEC 793, IEC 794-1-E1, IEC 794-1-E3, UL 1666/901 and EIA/TIA 455

Availability:

Can be supplied as pre-assembled one-piece connector or as connector kit
Housing kits without ferrule are available

Specifications:

Types:
- Single mode
- Multimode
Insertion loss:
- ≤0.2dB
- ≤0.25dB
Return loss:
- ≥55dB
- ≥30dB
Durability: ≤0.2dB typical change, 1000 times mating
Operating temperature: -45 to +85 degrees Centigrade
Ferrule hole sizes:
- 125.0 +/-1.0μm:
  - Concertricity: ≤1.0μm
- 125.0μm:
  - Concertricity: ≤3.0μm
- 125.3 +/-1.0μm:
  - Concertricity: ≤1.0μm
- 127.0μm
  - Concertricity: ≤3.0μm
- 125.5 +/-1.0μm:
  - Concertricity: ≤1.0μm
- 128.0μm:
  - Concertricity: ≤3.0μm
- 126.0 +/-1.0μm:
  - Concertricity: ≤1.0μm
