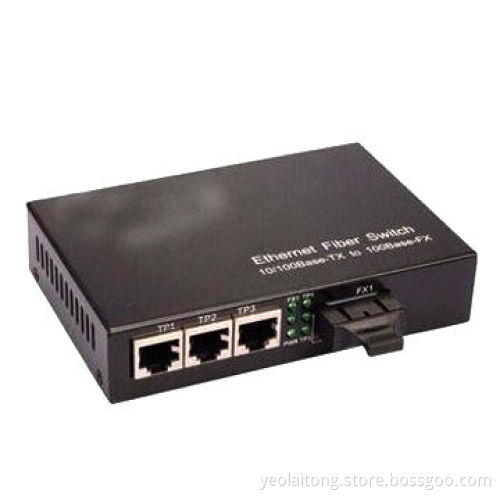

Fast Ethernet Media Converter, up to 120km Link Length with 3 10/100M RJ45 and One SC Duplex Port

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Dual fiber SC/ST/FC

3 Ethernet RJ45 ports

10/100M auto-negotiation

Distance: up to 120km

Warranty: 1 year

Compliant with IEEE802.3μ 100Base-TX and 100Base-FX

With one 100M optical fiber port and three 10/100M UTP ports

Possessed of stable performance, nice quality and reasonable price because of adopting latest IC from USA and transceivers

Applicable to use in small patterns of fiber-optic Ethernet

Features:

Can convert optical-electric Ethernet signals between 10/100M UTP ports (TX) and 100M optical fiber interface (FX)
UTP port supports MDI/MDI-X auto crossover
Broadcast storm protection
Supports 1916 bytes frame

Specifications:

Operating standards: IEEE802.3μ 100Base-TX and 100Base-FX
Connector: UTP: RJ-45, 10/100Mbps
Fiber: ST/SC/FC, 100Mbps (full-duplex)
Cable:
- UTP cable: Cat5 (maximum distance of up to 100m)
- Fiber (multi-mode): 50/125, 62.5/125μM (maximum distance of up to 2km)
- Fiber (single-mode): 8.3/125, 8.7/125, 9/125, 10/12μM (maximum distance of up to 100km)

Flow control:

Can convert optical-electric Ethernet signals between 10/100M UTP ports (TX) and 100M optical fiber interface (FX)

UTP port supports MDI/MDI-X auto crossover

Broadcast storm protection

Supports 1916 bytes frame

Operating standards: IEEE802.3μ 100Base-TX and 100Base-FX

Connector: UTP: RJ-45, 10/100Mbps

Fiber: ST/SC/FC, 100Mbps (full-duplex)

Cable:

UTP cable: Cat5 (maximum distance of up to 100m)
Fiber (multi-mode): 50/125, 62.5/125μM (maximum distance of up to 2km)
Fiber (single-mode): 8.3/125, 8.7/125, 9/125, 10/12μM (maximum distance of up to 100km)

UTP cable: Cat5 (maximum distance of up to 100m)

Fiber (multi-mode): 50/125, 62.5/125μM (maximum distance of up to 2km)

Fiber (single-mode): 8.3/125, 8.7/125, 9/125, 10/12μM (maximum distance of up to 100km)

Full-duplex: IEEE802.3x flow control

Half-duplex: Bake pressure flow control

Power supply: 110 to 240V AC

Environment temperatures: 0 to 50°C

Storage temperatures: -20 to 70°C

Humidity range: 5 to 90% RH

Dimensions: 180 x 45 x 143mm
