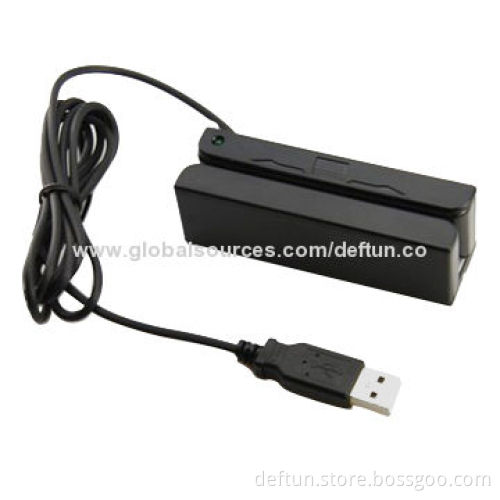

USB Mini MSR Magnetic Card Reader with Bi-directional Read CapabilityNew
- Payment Type:
- WU, Bank Transfer, MoneyGram, Moneybooker
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | WU, Bank Transfer, MoneyGram, Moneybooker |
|---|
Product Description
Product Description
- The OEM MagStripe reader is a MagStripe reader for OEM applications
- It reads up to three tracks of data with a single swipe in either direction
- Its small size slot and mounting options make it a perfect fit for reading magnetic stripes in any OEM applications
- It has reliable MagStripe reading on damaged or bowed cards
- The rugged ABS plastic chassis with molded-in stainless steel card wear plate exceeds 1,000,000 card swipes
- The reader is available in custom configurations including intelligent interface, and custom cable/connector options
- Swipe speed of 3 to 60 inches per second
- Custom interface and I/O cables available
- Interface: decoded clock and data (TTL), USB, RS232, keyboard
- Easy to mount, multiple cable pin-out options
- Small size and multiple standard footprints
- Reads 1, 2, or 3 tracks of magnetic data
- Operating life exceeds 1,000,000 card swipes
- Superior reading of high-jitter, scratched, and worn MagStripe cards
- The chassis utilizes a stainless steel wear plate
- Bi-directional read capability
- One year warranty
- Card type: ISO/IEC 7810 ID-1, ISO/IEC 7811-1, 2, 6
- Card feeding speed: 10 - 150cm/second
- Magnetic head lifespan: 1,000,000 passes (minimum)
- Magnetic stripe formats: ISO7811, Aiken code (F2F)
- Encrypt: DES, 3DES or AES (can be choose)
- Weight: 40g (approximately)
- Power supply: +3.3-5V DC ±10% (50mV ripple maximum)
- About 35mA for combination magnetic stripe (3 tracks)
- Operating temperature: 32-131ºF (0-55ºC)
- Extended temperature option: -30-140ºF (-35-60ºC) (non-condensing)
- Storage temperature: -22º-158ºF (-30-70ºC) (non-condensing)
- Maximum humidity: 95% RH (non-condensing)
