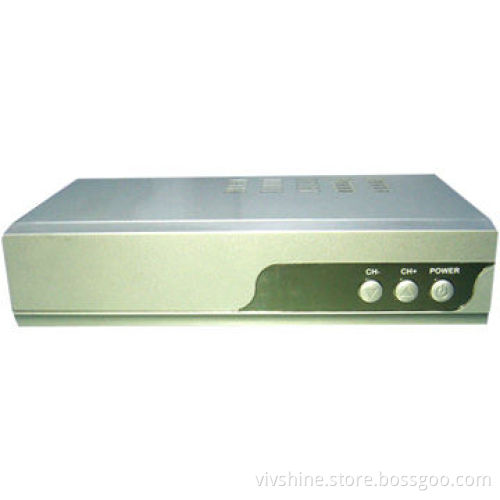

DVB-T2 Set Top Box with USB PVR Size 168

DVB-T2 Set Top Box with USB PVR Size 168

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Main features:

Fully ATSC compliant for North America with NTIA certificate
ATSC terrestrial broadcast channels of 2 to 69
HDMI® for multimedia play, standard and high-definition output
Auto and manually scan all available TV and radio channels
HDMI/RCA output
Multiple language OSD and subtitles (English/French/Spanish)
Supports EPG, display present/next TV program
EIA 608 closed caption
Parental control (V-chip)
PVR ready function via USB 2.0, time shift function
NTSC loop through supported
Universal remote control

Tuner:

ATSC terrestrial tuner
RF input frequency: 54 to 803MHz
Bandwidth: 6MHz
Input levels: -83 to -5dBm
RF 3/4CH and loop through function

Decoding:

MPEG transport stream and A/V decoding
Video decoder: ATSC A/72 MPEG2/4 H.264 SD and HD
Aspect ratio range: 4:3 or 16:9
MP at HL HDTV, MP at ML SDTV
ATSC format
Video resolution: 720x480 NTSC/HDMI 1080p
Audio standard: ISO/IEC 14.496-3
Audio mode: mono, dual-channel and stereo

Demodulation:

ATSC NTIA standard, 8VSB
QPSK, 64QAM, 256QAM
FEC: 1/2, 2/3, 3/4, 4/5, 5/6
Guard interval: 1/4, 1/8, 1/16, 1/32, 1/128
FFT mode: 2, 8, 32K
Demultiplexer
Standard: ISO/IEC 13818-1, ARIB STB-B10
Input max. bit stream rate: 36Mbps (serial)/9Mbps (parallel)

Multimedia features:

Photo: JPEG, BMP, PNG
Audio: WMA, MP3, AAC (.WMA, .MP3, .M4A)
Video: MPEG1, MPEG2, MPEG4, H264
Motion JPEG (AVI, MPG, DAT, VOB, DIV, MOV, MKV, MJPEG, TS and TRP)
JPEG/audio combo playback
Supports PVR with USB (optional)
Timing record (when power on) (optional)

Fully ATSC compliant for North America with NTIA certificate

ATSC terrestrial broadcast channels of 2 to 69

HDMI® for multimedia play, standard and high-definition output

Auto and manually scan all available TV and radio channels

HDMI/RCA output

Multiple language OSD and subtitles (English/French/Spanish)

Supports EPG, display present/next TV program

EIA 608 closed caption

Parental control (V-chip)

PVR ready function via USB 2.0, time shift function

NTSC loop through supported

Universal remote control

ATSC terrestrial tuner

RF input frequency: 54 to 803MHz

Bandwidth: 6MHz

Input levels: -83 to -5dBm

RF 3/4CH and loop through function

MPEG transport stream and A/V decoding

Video decoder: ATSC A/72 MPEG2/4 H.264 SD and HD

Aspect ratio range: 4:3 or 16:9

MP at HL HDTV, MP at ML SDTV

ATSC format

Video resolution: 720x480 NTSC/HDMI 1080p

Audio standard: ISO/IEC 14.496-3

Audio mode: mono, dual-channel and stereo

ATSC NTIA standard, 8VSB

QPSK, 64QAM, 256QAM

FEC: 1/2, 2/3, 3/4, 4/5, 5/6

Guard interval: 1/4, 1/8, 1/16, 1/32, 1/128

FFT mode: 2, 8, 32K

Demultiplexer

Standard: ISO/IEC 13818-1, ARIB STB-B10

Input max. bit stream rate: 36Mbps (serial)/9Mbps (parallel)

Photo: JPEG, BMP, PNG

Audio: WMA, MP3, AAC (.WMA, .MP3, .M4A)

Video: MPEG1, MPEG2, MPEG4, H264

Motion JPEG (AVI, MPG, DAT, VOB, DIV, MOV, MKV, MJPEG, TS and TRP)

JPEG/audio combo playback

Supports PVR with USB (optional)

Timing record (when power on) (optional)

Front panel:

Indicators
IR receiver
USB: firmware upgrade, PVR and multimedia playback (optional)
LED display (optional)

Rear panel:

RFIN *1
RF out (loop through)*1
HDMI 1.3*1
CH3/4 switch
CVBS*1
L/R *1

Power: wide range AC power supply (110 to 240V, 50/60Hz)

Dimension: 168 x 90 x 38mm

Accessories:

Remote controller
User guide
A pair of AAA batteries

Indicators

IR receiver

USB: firmware upgrade, PVR and multimedia playback (optional)

LED display (optional)

RFIN *1

RF out (loop through)*1

HDMI 1.3*1

CH3/4 switch

CVBS*1

L/R *1

Remote controller

User guide

A pair of AAA batteries
