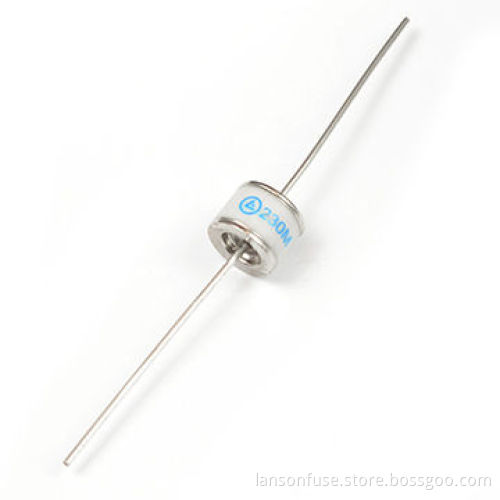

Gas Discharge Tube with 52 to 135V Hold Over-voltage and 2A AC Discharge Current

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

DC spark over-voltage (100V/second): ±20%V

Impulse spark over-voltage (1kV/μs): ≤700 to 1,400V

Insulation resistance: ≥1gΩ

Electrode capacitance: 1MHz/0.5V

Power factor: ≤1

Impulse discharge current (10/1,000μs, 300 times): 50A

Impulse discharge current (8/20μs, 10 times): 2kA

AC discharge current (50Hz, 1 second, 10 times): 2A

Hold over-voltage range: 52 to 135V
