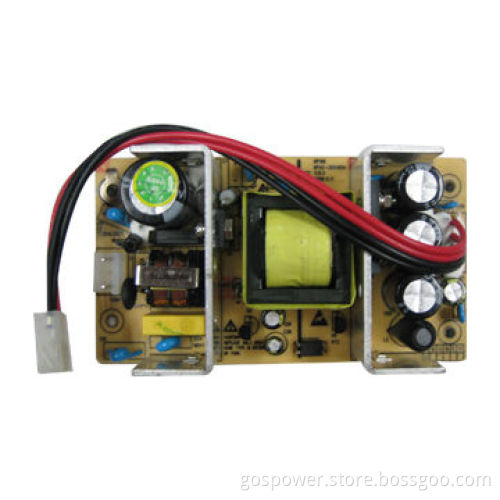

30W Telecom PSU with 90 to 264V AC, 47 to 63Hz Input Voltages

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Technical data:

Mechanical specifications:

Dimensions : 112 x 60 x 30mm
Packaging:
- Carton: 53.5 x 31 x 30.7cm/80 pieces per carton
- Net weight: 12.5kg
- Gross weight: 14.5kg

Input voltages: 90 to 264V AC, 47 to 63Hz

Input current: 1A maximum full loaded

Inrush current: 50Ap (110/220V AC)

Efficiency: 75% minimum

Output voltage: 5V DC (range: 4.75 to 5.25V DC)

Output current: 6A

Ripple and noise: 50mV at 25 100mV at -10

EMC and standards: class B.design meet IEC950 and GB4943

With TUV, UL, CE and 3C marks

Environment-friendly

Operating temperatures: 10 to 50

Storage temperatures: -20 to 70°C

Humidity: 5 to 95%RH

Dimensions : 112 x 60 x 30mm

Packaging:

Carton: 53.5 x 31 x 30.7cm/80 pieces per carton

Net weight: 12.5kg

Gross weight: 14.5kg
