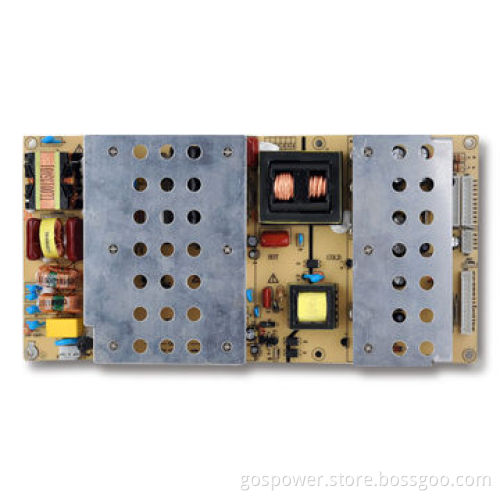

43-inch LCD LED Power Supply with Overvoltage and Short-circuit Protections
  • 43-inch LCD LED Power Supply with Overvoltage and Short-circuit Protections
43-inch LCD LED Power Supply with Overvoltage and Short-circuit Protections

43-inch LCD LED Power Supply with Overvoltage and Short-circuit Protections

Get Latest Price
Payment Type:
T/T in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance
Product Description
Product Description
  • Electronic specifications:
    • Input voltages: 90 to 264V AC at 47 to 63Hz
    • Input current: 4.0A (maximum)
    • Inrush current: 50Ap (120V AC), 100Ap (220V AC)
    • Output voltage: 24V DC, 5V DC, 12V DC, 5VSB
    • Output current: 9.0A, 2.0A, 1.0A, 3.5A
    • Ripple and noise: 240mV, 120mV, 50mV
    • Line regulation: ±5%
    • Total output: 270W
    • Power efficiency: 83% (minimum)/100V AC, 87% (minimum)/220VAC
    • Protections: OCP, OVP and SCP
  • Mechanical specifications:
    • Dimensions: 260 x 130 x 28mm
    • Weight: 800g
    • Operation temperatures: 10 to 50°C
    • Storage temperatures: -20 to 80°C
    • Relative humidity: 5 to 95% RH
    • Standards: EN55022, GB9254, CLASS B, IEC61000, UL60065, EN60065and GB8898-2001
  • Input voltages: 90 to 264V AC at 47 to 63Hz
  • Input current: 4.0A (maximum)
  • Inrush current: 50Ap (120V AC), 100Ap (220V AC)
  • Output voltage: 24V DC, 5V DC, 12V DC, 5VSB
  • Output current: 9.0A, 2.0A, 1.0A, 3.5A
  • Ripple and noise: 240mV, 120mV, 50mV
  • Line regulation: ±5%
  • Total output: 270W
  • Power efficiency: 83% (minimum)/100V AC, 87% (minimum)/220VAC
  • Protections: OCP, OVP and SCP
  • Dimensions: 260 x 130 x 28mm
  • Weight: 800g
  • Operation temperatures: 10 to 50°C
  • Storage temperatures: -20 to 80°C
  • Relative humidity: 5 to 95% RH
  • Standards: EN55022, GB9254, CLASS B, IEC61000, UL60065, EN60065and GB8898-2001
