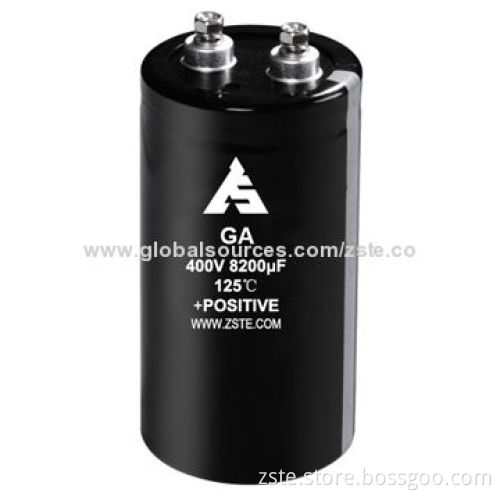

Aluminum Electrolytic Capacitor, Screw Type, Ultra High Temperature, Standard

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Resistant to ultra high temperature from up to 125°C

Load life: 125°C, 2,000 hours

All welded construction ensures reliable electrical contact

Compliant with the RoHS Directive

2 years warranty

Rated working voltage range: 400V (-25 to 125°C)

Capacitance range: 8,200μF

Size: 89x195mm

Capacitance tolerance: -20 to 20% (20°C, 120Hz)

Leakage current (maximum): I=0.01CrUr or 5mA, whichever is minimum (at 20°C, after 5 minutes application of rated voltage)

I= leakage current

Ur= rated voltage

Cr= rated capacitance
