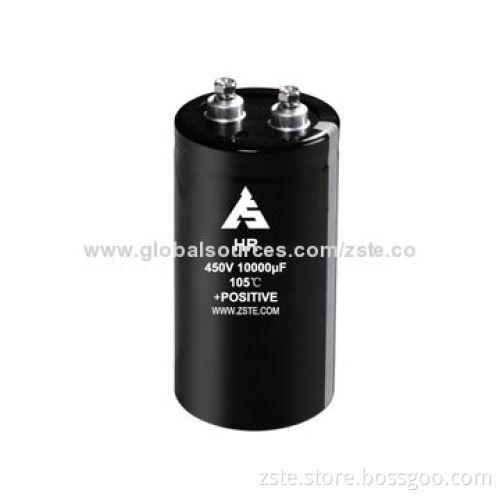

Aluminum Electrolytic Capacitor, Screw Type, High Temperature, Long Life, High RippleNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

High reliability, long lifespan, high ripple

Resistant to high temperature from up to 105°C

Load lifespan: 105°C 3000 hours

All-welded construction ensures reliable electrical contact

RoHS Directive-compliant

2 years warranty

Applications: frequency converters, professional power supplies and solar

Rated working voltage range: 450V (-40 to 105°C)

Capacitance range: 10,000μF

Size: 89x220mm

Capacitance tolerance: -20 to 20% (20°C,120Hz)

Leakage current (maximum): I=0.01CrUr or 5mA, whichever is minimum (at 20°C, after 5 minutes application of rated voltage)

I= leakage current

Ur= rated voltage

Cr= rated capacitance
