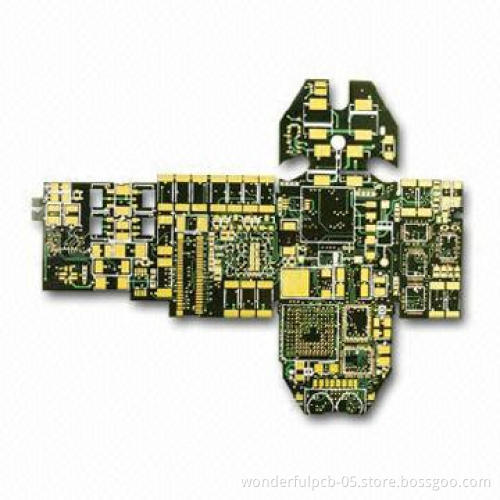

Single-layered PCB, Treated by Immersion Gold, UL-, SGS- and RoHS-approvals

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

2 to 28 layers PCB prototype and mass production

UL-, SGS- and RoHS-approvals

Parts purchase

Reference-our production capability for rigid PCB:

Layers: 1 to 28 layer

Board finished thickness: 0.2 to 7.0mm

Material: FR-4, CEM-1,CEM-3, high TG, FR4 halogen free,rogers

Finished board size: 23 x 25mm (maximum) (580 x 900mm)

Drilled hole size: 3 mils (0.075mm) (minimum)

Line width: 3 mils (0.075mm) (minimum)

Line spacing: 3 mils (0.075mm) (minimum)

Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP, gold plating

Copper thickness: 0.5 to 7.0oz

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0μm (>1mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13

Hole tolerance:

Certifications: UL-,SGS- and RoHS-approvals

Special requirements: buried and blind vias + controlledimpedance + BGA

Profiling: punching, routing, V-CUT, beveling

Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products

PTH: ±0.076

NPTH: ±0.05
