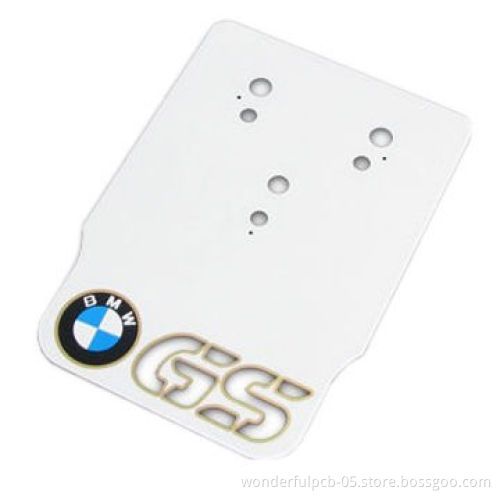

Single-sided Aluminum PCB with 1.6mm Aluminum Circuits, Used for Automotive

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, OA and PayPal

Product Description

Specifications:

Layers: 1 to 28

1.6mm aluminum circuits

Used for automotive

Board finished thickness: 0.2 to 7.0mm

Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free,rogers

Finished board size: 23 x 25mm (580 x 900mm)

Drilled hole size: 3 mils (0.075mm)

Line width: 3 mils (0.075mm)

Line spacing: 3 mils (0.075mm)

Surface finish/treatment: HASL lead free, HAL, chemical tin,chemical gold

Immersion silver/gold, OSP, gold plating

Copper thickness: 0.5 to 7.0oz

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0µm (>1 mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ± 0.13

Hole tolerance: PTH: ± 0.076, NPTH: ± 0.05

Special requirements: buried and blind vias, controlledimpedance, BGA

Profiling: punching, routing, V-cut, beveling
