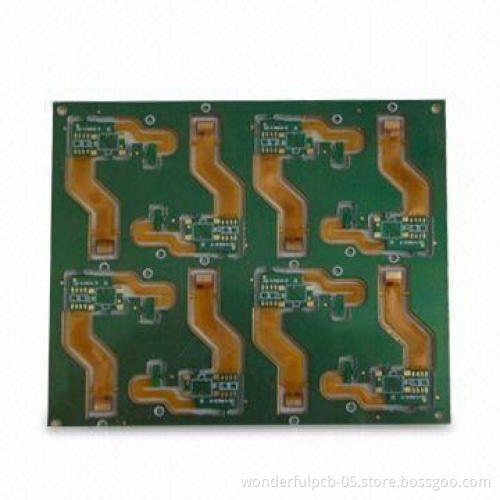

Rigid-flex PCB with 0.2mm Polymide, Copper Thickness of 0.5 to 7.0oz
  • Rigid-flex PCB with 0.2mm Polymide, Copper Thickness of 0.5 to 7.0oz
Rigid-flex PCB with 0.2mm Polymide, Copper Thickness of 0.5 to 7.0oz

Rigid-flex PCB with 0.2mm Polymide, Copper Thickness of 0.5 to 7.0oz

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Specification:
    • Layer counts: 1 to 28 layers
    • Board finished thickness: 0.21 to 7.0mm
    • Polymide: 0.2mm
    • Material: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free,Rogers
    • Finished board size: 23 x 25 (580mm) (maximum)
    • Drilled hole size: 3mil (0.075mm) (minimum)
    • Line width: 3mil (0.075mm) (minimum)
    • Line spacing: 3mil (0.075mm) (minimum)
    • Surface finish/treatment:
      • HASL/HASL lead free, HAL, chemical tin, chemical gold,immersion silver/gold, OSP, gold plating
    • Copper thickness: 0.5 to 7.0oz
    • Solder mask color: green/yellow/black/white/red/blue
    • Copper thickness in hole: >25.0 um (>1mil)
    • Shape tolerance: ±.13
    • Hole tolerance:
      • PTH: ±.076
      • NPTH: ±.05
    • Certificate: UL mark
    • Special requirements: buried and blind via, controlledimpedance, BGA
    • Profiling: punching, routing, V-cut, beveling
    • Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products
  • Packing:
    • Inner packing: vacuum packing/plastic bag
    • Outer packing: standard carton packing
  • Layer counts: 1 to 28 layers
  • Board finished thickness: 0.21 to 7.0mm
  • Polymide: 0.2mm
  • Material: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free,Rogers
  • Finished board size: 23 x 25 (580mm) (maximum)
  • Drilled hole size: 3mil (0.075mm) (minimum)
  • Line width: 3mil (0.075mm) (minimum)
  • Line spacing: 3mil (0.075mm) (minimum)
  • Surface finish/treatment:
    • HASL/HASL lead free, HAL, chemical tin, chemical gold,immersion silver/gold, OSP, gold plating
  • Copper thickness: 0.5 to 7.0oz
  • Solder mask color: green/yellow/black/white/red/blue
  • Copper thickness in hole: >25.0 um (>1mil)
  • Shape tolerance: ±.13
  • Hole tolerance:
    • PTH: ±.076
    • NPTH: ±.05
  • Certificate: UL mark
  • Special requirements: buried and blind via, controlledimpedance, BGA
  • Profiling: punching, routing, V-cut, beveling
  • Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products
  • HASL/HASL lead free, HAL, chemical tin, chemical gold,immersion silver/gold, OSP, gold plating
  • PTH: ±.076
  • NPTH: ±.05
  • Inner packing: vacuum packing/plastic bag
  • Outer packing: standard carton packing
