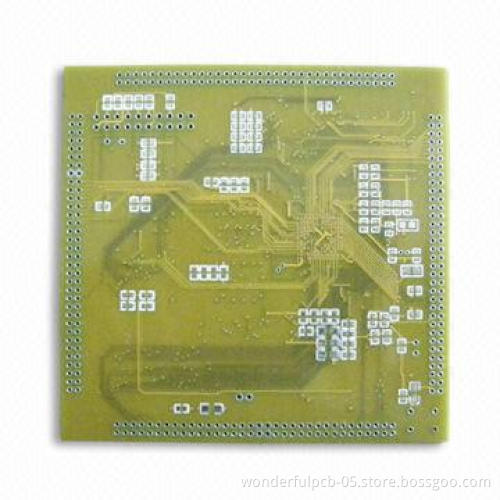

Power Supply PCB with Lead-free HAL Surface Finishing and Yellow Soldermask

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Power supply PCB with lead-free HAL surface finishing

Key specifications:

Reference: our production capability for rigid PCB

Layer: 1 to 28

Board finished thickness: 0.21 to 7.0mm

Material: FR-4, CEM-1, CEM-3, high TG, FR4 halogen-free,Rogers

Maximum finished board size: 23 × 25 (580 ×900mm)

Minimum drilled hole size: 3mil (0.075mm)

Minimum line width: 3mil (0.075mm)

Minimum line spacing: 3mil (0.075mm)

Surface finish/treatment: HASL/HASL lead-free, HAL, chemicaltin, chemical gold, immersion silver, gold, OSP, and goldplating

Copper thickness: 0.5 to 7.0oz

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0um (>1mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13

Hole tolerance:

Certificate: UL, ISO 9001, and ISO 14001

Special requirements: buried and blind vias + controlledimpedance + BGA

Profiling: punching, routing, V-cut, and beveling

Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products

Material: FR-4

Layer: 2

Copper thickness: 3oz

Soldermask: yellow

Silkscreen: black

Surface finish: HASL lead-free

Buried and blind hole: not supported

Application: gas detector, remote control, telecommunicationproducts

PTH: ±0.076

NPTH: ±0.05
